Documents: 3RH29111XA220MA0

Datasheet

3RH29111XA220MA0 | AUX. SWITCH 2NO+2NC FOR S00 & S0 SCREW | Siemens Electrical

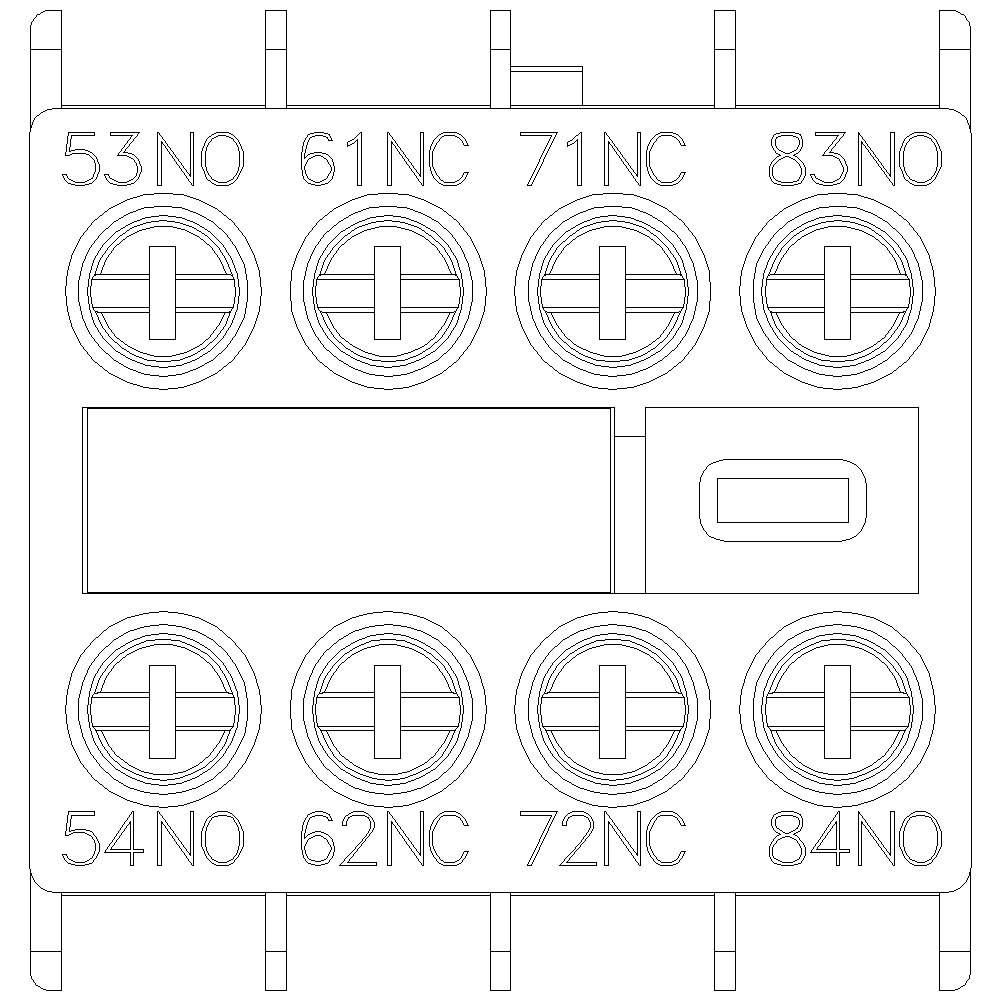

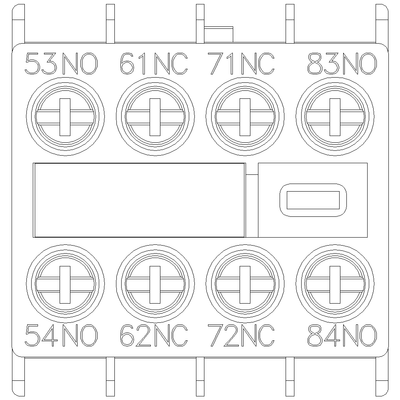

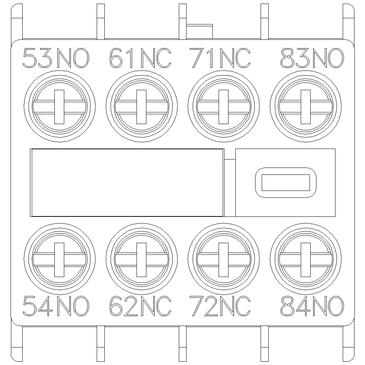

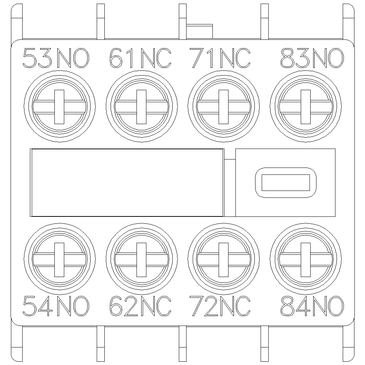

Aux.switch block,front,2NO+2NC, curr.path 1NO, 1NC,1NC,1NO, special variants for sz s00 and s0, screw terminal 53 / 54,61 / 62,71 / 72,83 / 84 din en 50005

Brand: Siemens ElectricalSKU: 3RH29111XA220MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RH29111XA220MA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RH29111XA220MA0

Specifications

Item Number	3RH29111XA220MA0
Brand	Siemens Electrical
Height	1.700 IN
Lamp holder	None
Length	2.400 IN
Model	Top mounting
Mounting method	Other
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Number of fault-signal switches	0
Rated operation current Ie at AC-15; 230 V	0.25
Type of electric connection	Screw connection
Weight	0.77500 LB
Width	2.100 IN
