32DUDB92B2H2F | Starter | 2Spd | Combo SZ1 | 5.5-22A | N1 | 120V | Siemens Electrical

2-speed 3-phase motor starter, Size 1, One winding, One winding consequent pole, Size 1, Constant horsepower, Solid-state overload relays, Low Spd OLR range 0.75-3.4A, Low Spd OLR range 0.75?3.4A, High Spd OLR range 5.5-22A, 110V 50Hz / 120V 60Hz coil, Combination type, 30A disconnect switch, Enclosure NEMA type 1, Indoor general purpose use

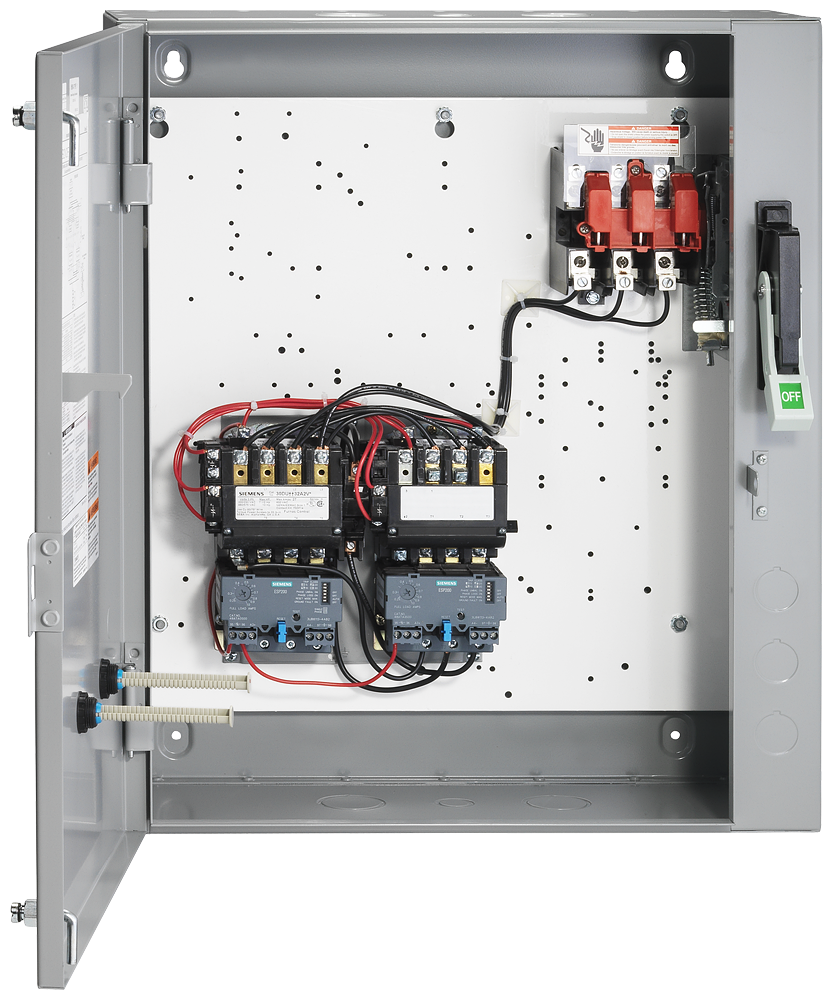

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 32DUDB92B2H2F

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Electrical 32DUDB92B2H2F Documents

Datasheet

Overview

Details for 32DUDB92B2H2F

Specifications

Item Number	32DUDB92B2H2F
Brand	Siemens Electrical
Degree of protection (NEMA)	1
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Rated operation current Ie	27 A
Rated power; 460 V; 60 Hz; 3-phase	5.516240624 kW
Voltage type for actuating	AC
Weight	52 LB
With short-circuit release	FALSE
