Documents: 32DUCC92B1HF

Datasheet

32DUCC92B1HF | Starter | 2Spd | Combo SZ1 | 3-12Amps | N1 | 120V | Siemens Electrical

2-speed 3-phase motor starter, Size 1, Two separate windings, Constant horsepower, Solid-state overload relays, Low Spd OLR range 3-12A, High Spd OLR range 3-12A, 110V 50Hz / 120V 60Hz coil, Combination type, 10A circuit breaker, Enclosure NEMA type 1, Indoor general purpose use

Brand: Siemens ElectricalSKU: 32DUCC92B1HF

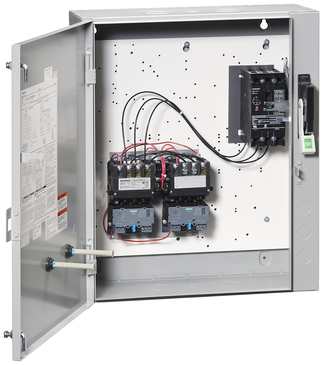

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 32DUCC92B1HF

Jump to: Overview & Specifications Reviews

Overview Details for 32DUCC92B1HF

Specifications

Item Number	32DUCC92B1HF
Brand	Siemens Electrical
Degree of protection (NEMA)	1
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Rated operation current Ie	27 A
Rated power; 460 V; 60 Hz; 3-phase	5.516240624 kW
Voltage type for actuating	AC
Weight	51 LB
With short-circuit release	TRUE
