Documents: 32CUBB92B2V2A

Datasheet

32CUBB92B2V2A | Starter | 2Spd | Combo SZ0 | 0.75-3.4Amps | N1 | 1 | Siemens Electrical

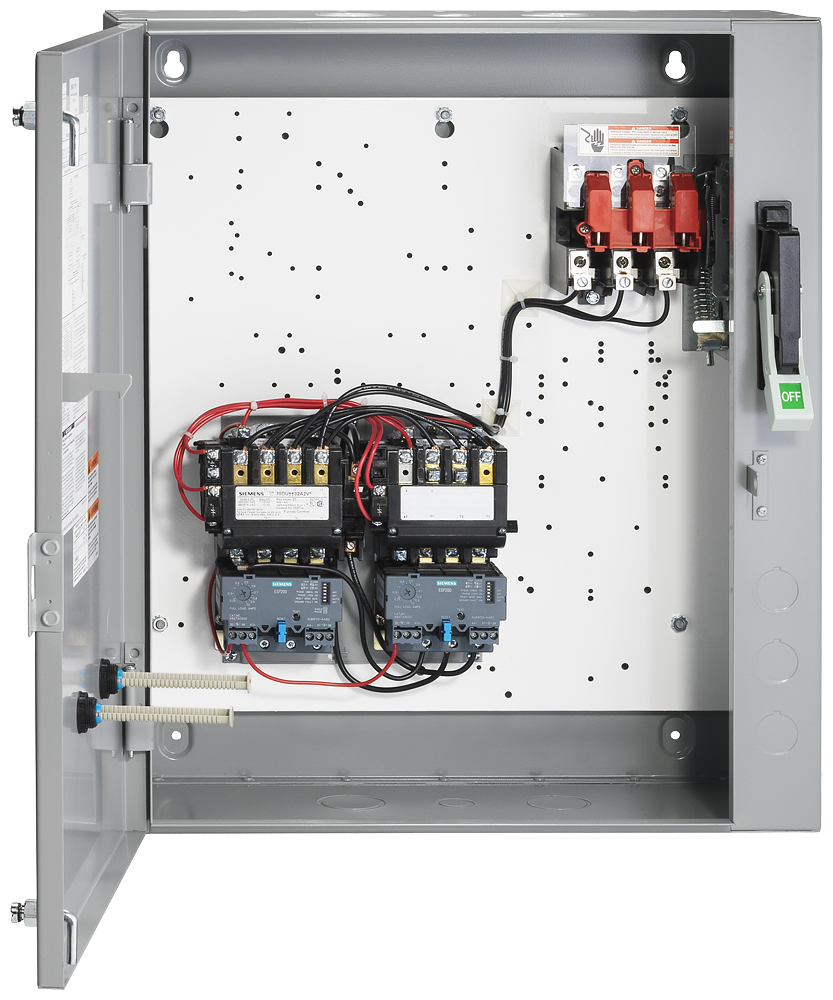

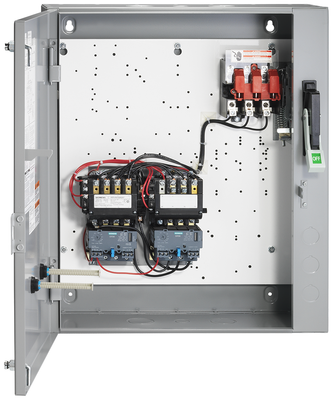

2-speed 3-phase motor starter, Size 0, One winding consequent pole, Constant or variable torque, Solid-state overload relays, Low Spd OLR range 0.75-3.4A, High Spd OLR range 0.75-3.4A, 110#120/220#240VAC 60Hz coil, Combination type, 30A disconnect switch, Enclosure NEMA type 1, Indoor general purpose use

Brand: Siemens ElectricalSKU: 32CUBB92B2V2A

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 32CUBB92B2V2A

Jump to: Overview & Specifications Reviews

Overview Details for 32CUBB92B2V2A

Specifications

Item Number	32CUBB92B2V2A
Brand	Siemens Electrical
Degree of protection (NEMA)	1
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Rated control supply voltage Us at AC 60HZ	110 V
Rated operation current Ie	18 A
Rated power; 460 V; 60 Hz; 3-phase	1.103248125 kW
Voltage type for actuating	AC
Weight	52 LB
With short-circuit release	FALSE
