Documents: 18DUE92NH

Datasheet

18DUE92NH | Starter | Combo SZ1 | 10-40Amps | N12/3R | 480V | Siemens Electrical

Non-reversing motor starter, Size 1, Three phase full voltage, Solid-state overload relay, OLR amp range 10-40A, 380#440/440#480V 50/60Hz coil, Combination type, 30A circuit breaker, Enclosure NEMA type 4/12, Water/dust tight for outdoors, Standard width enclosure

Brand: Siemens ElectricalSKU: 18DUE92NH

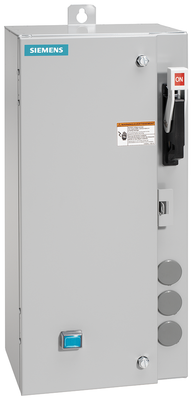

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 18DUE92NH

Jump to: Overview & Specifications Reviews

Overview Details for 18DUE92NH

Specifications

Item Number	18DUE92NH
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	0.416666666666667
Rated control supply voltage Us at AC 50HZ	380 V
Rated control supply voltage Us at AC 60HZ	440 V
Release class	Other
Voltage type for actuating	AC
Weight	34 LB
With short-circuit release	TRUE
With transformer	FALSE
