Documents: 17FUF92BC

Datasheet

17FUF92BC | Starter | Combo SZ2 | 13-52Amps | N1 | 240/480V | Siemens Electrical

Non-reversing motor starter, Size 2, Three phase full voltage, Solid-state overload relay, OLR amp range 13-52A, 220#240/440#480VAC 60Hz coil, Combination type, 60A non-fusible disconnect, Enclosure NEMA type 1, Indoor general purpose use, Standard width enclosure

Brand: Siemens ElectricalSKU: 17FUF92BC

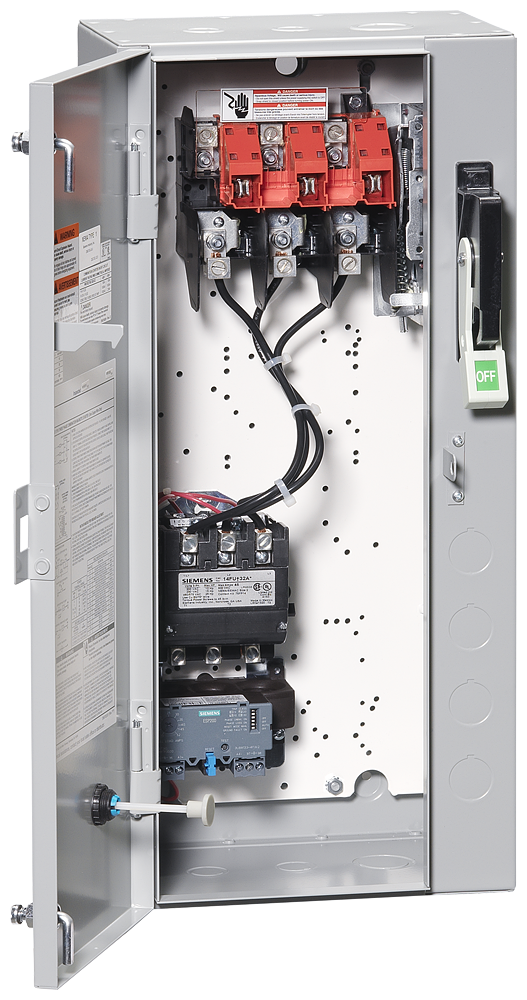

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 17FUF92BC

Jump to: Overview & Specifications Reviews

Overview Details for 17FUF92BC

Specifications

Item Number	17FUF92BC
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
Degree of protection (NEMA)	1
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	13 A
Rated control supply voltage Us at AC 60HZ	220 V
Voltage type for actuating	AC
Weight	35 LB
With short-circuit release	FALSE
With transformer	FALSE
