QFA3230.FWNN | Room Humidity + Temperature Sensor, Full Featuire, No Logo | Siemens
Room Humidity (0-10V) + Temperature Sensor (10k Ohm Type 2 Thermistor), Full Featuire, No Logo

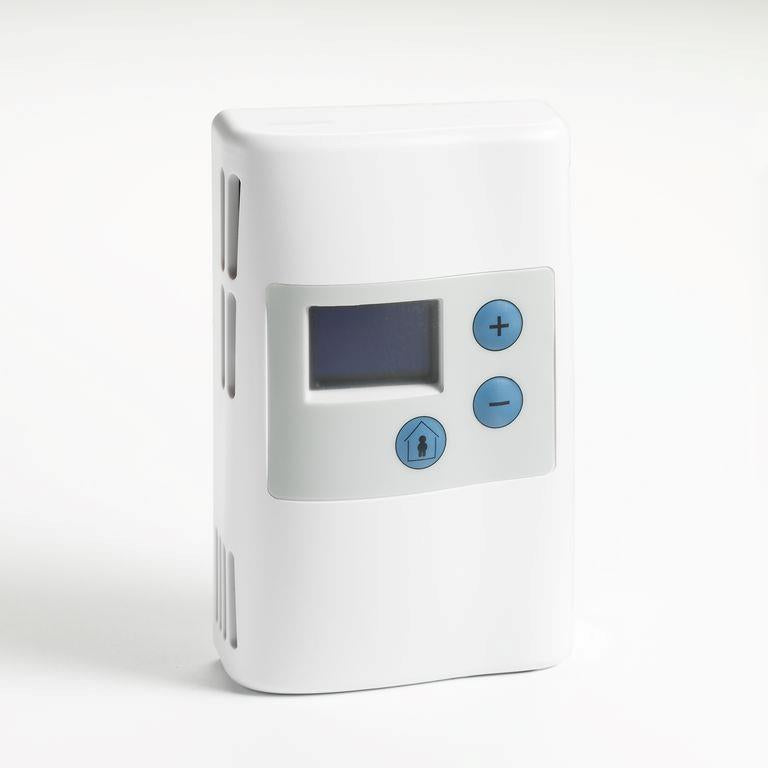

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFA3230.FWNN
Documents and manuals
Siemens QFA3230.FWNN Documents
Datasheet(OBSOLETE Series 2300 RH/T Room Units. Technical Specification Sheet)Datasheet(Series QAA2200 Room Temperature Sensors & Series QFA3200 Room Humidity Sensors Technical Specification Sheet)Declaration of conformity(Room Sensor Declaration of Conformity)Installation instruction(Series 3200 Relative Humidity and Temperature Room Units Installation Instructions) Installation Instructions More Info
Overview
Details for QFA3230.FWNN
Room Humidity + Temperature Sensor, Full Featuire, No Logo
Room Humidity (0-10V) + Temperature Sensor (10k Ohm Type 2 Thermistor), Full Featuire, No LogoSpecifications
- Measurement range humidity
- 0-100% RH
- Operating voltage
- 18 to 36 Vdc or 24 Vac ± 20 %
- Analog outputs
- 0-10V / 4-20mA (selectable)
- Measuring range
- Temperature: 32 to 122°F; Humidity: 0 to 100% RH
- Measurement accuracy
- Temperature: +/- 0.4°F @ 32°F; , Humidity: +/-2% between 10 to 90% RH, +/-3% outside this range
- Display
- Full HMI
- Dimensions (W x H x D)
- 5.25 x 3 x 3.75 in
