B324UD-HA226.18K | BFV 3W 24" 50PSI 120VAC 2 POS HTR CONFIG D | Siemens

High Temp Industrial Butterfly Valve Assembly, 3-way, 24-inch, 50 psi, 120 Vac, 2 position, Heater, Configuration D

Siemens | B324UD-HA226.18K

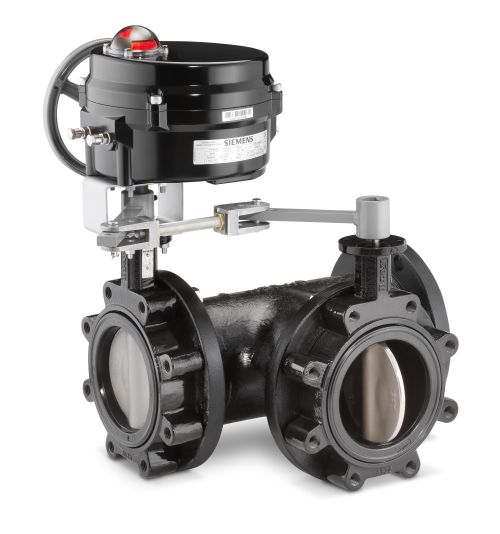

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B324UD-HA226.18K
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens B324UD-HA226.18K Documents

Datasheet(A-Series Electric Actuator Technical Specification Sheet)Datasheet(Resilient Seat Butterfly Valves Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Specification Sheet)Datasheet(A Series Industrial Electric Actuator Technical Instructions)Operating Instructions(A-Series Industrial Electric Actuator_600 to 18.000 lb-in_Installation. Operation and Maintenance Manual)Datasheet for Actuator(A-Series Electric Actuator Technical Specification Sheet) More Info

Overview

Details for B324UD-HA226.18K

BFV 3W 24" 50PSI 120VAC 2 POS HTR CONFIG D

High Temp Industrial Butterfly Valve Assembly, 3-way, 24-inch, 50 psi, 120 Vac, 2 position, Heater, Configuration D

Specifications

Valve Size
24 in
Flow Coefficient, Cv
11040
Valve Type
Three-way
Valve Body Style
Rotary-Butterfly
Port Configuration
3-Way
End Connection
Lug
Material, valve body
Cast Iron
Trim Material
Stainless Steel
Butterfly Disc
Under Cut Disc
Configuration details
D
Butterfly Heater
YES
Butterfly Limit Switch
YES
Flow Characteristic
Modified Equal-percentage
Medium
Water , Water with anti-freeze
Max GPM
42336 gpm
Pressure Class
ANSI 125
High temperature
YES
Max. Inlet Pressure (absolute), Liquid
250 psi
Max. Differential Pressure, Liquid
29 psi
Medium temperature
-20…261 ºF
Close-off Pressure
50 psi
Valve Actuator Type
Electronic
Control Signal
2-position
Fail Safe
No
Supply Voltage
120 VAC
Auxiliary switch
2
Auxiliary Switch
Yes
Standard
NEMA 4
