B314UD-HA166.5K | BFV 3W 14" 50PSI 24VAC MOD HTR CONFIG D | Siemens

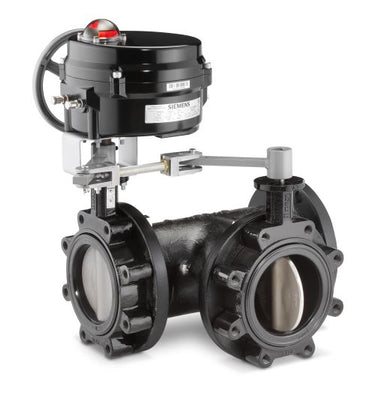

High Temp Industrial Butterfly Valve Assembly, 3-way, 14-inch, 50 psi, 24 Vac, 0-10 Vdc, Heater, Configuration D

Siemens | B314UD-HA166.5K
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B314UD-HA166.5K
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens B314UD-HA166.5K Documents

Datasheet(A-Series Electric Actuator Technical Specification Sheet)Datasheet(Resilient Seat Butterfly Valves Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Specification Sheet)Datasheet(A Series Industrial Electric Actuator Technical Instructions)Operating Instructions(A-Series Industrial Electric Actuator_600 to 18.000 lb-in_Installation. Operation and Maintenance Manual)Datasheet for Actuator(A-Series Electric Actuator Technical Specification Sheet) More Info

Overview

Details for B314UD-HA166.5K

BFV 3W 14" 50PSI 24VAC MOD HTR CONFIG D

High Temp Industrial Butterfly Valve Assembly, 3-way, 14-inch, 50 psi, 24 Vac, 0-10 Vdc, Heater, Configuration D

Specifications

Valve Size
14 in
Flow Coefficient, Cv
3384
Valve Type
Three-way
Valve Body Style
Rotary-Butterfly
Port Configuration
3-Way
End Connection
Lug
Trim Material
Stainless Steel
Butterfly Disc
Under Cut Disc
Configuration details
D
Butterfly Heater
YES
Medium
Water , Water with anti-freeze
Max GPM
14406 gpm
Pressure Class
ANSI 125
High temperature
YES
Max. Inlet Pressure (absolute), Liquid
250 psi
Medium temperature
-20…250 ºF
Close-off Pressure
50 psi
Valve Actuator Type
Electronic
Control Signal
0...10 Vdc
Fail Safe
No
Supply Voltage
24 VAC
Auxiliary Switch
Yes
Standard
NEMA 4
