B305FC-HA166.2K | BFV 3W 5" 175PSI 24VAC MOD HTR CONFIG C | Siemens

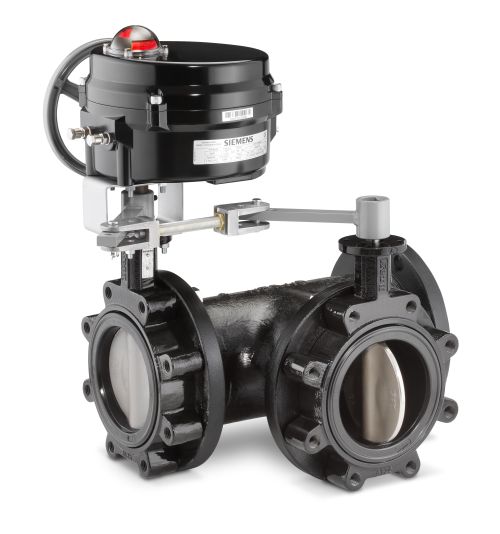

High Temp Industrial Butterfly Valve Assembly, 3-way, 5-inch, 175 psi, 24 Vac, 0-10 Vdc, Heater, Configuration C
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B305FC-HA166.2K
Documents and manuals
Siemens B305FC-HA166.2K Documents
Datasheet(A-Series Electric Actuator Technical Specification Sheet)Datasheet(Resilient Seat Butterfly Valves Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Specification Sheet)Datasheet(A Series Industrial Electric Actuator Technical Instructions)Operating Instructions(A-Series Industrial Electric Actuator_600 to 18.000 lb-in_Installation. Operation and Maintenance Manual)Datasheet for Actuator(A-Series Electric Actuator Technical Specification Sheet) More Info
Overview
Details for B305FC-HA166.2K
BFV 3W 5" 175PSI 24VAC MOD HTR CONFIG C
High Temp Industrial Butterfly Valve Assembly, 3-way, 5-inch, 175 psi, 24 Vac, 0-10 Vdc, Heater, Configuration C
Specifications
- Valve Size
- 5 in
- Flow Coefficient, Cv
- 428
- Valve Type
- Three-way
- Valve Body Style
- Rotary-Butterfly
- Port Configuration
- 3-Way
- End Connection
- Lug
- Trim Material
- Stainless Steel
- Butterfly Disc
- Full Cut Disc
- Configuration details
- C
- Butterfly Heater
- YES
- Medium
- Water , Water with anti-freeze
- Max GPM
- 1838 gpm
- Pressure Class
- ANSI 125
- High temperature
- YES
- Max. Inlet Pressure (absolute), Liquid
- 250 psi
- Medium temperature
- -20…250 ºF
- Close-off Pressure
- 175 psi
- Valve Actuator Type
- Electronic
- Control Signal
- 0...10 Vdc
- Fail Safe
- No
- Supply Voltage
- 24 VAC
- Auxiliary Switch
- Yes
- Standard
- NEMA 4
