B225FC-GCA126.3U | BFV 2W 2.5" 175PSI SR NC 24VAC 2 POS W/SW | Siemens

Standard Temp Commercial Butterfly Valve Assembly, 2-way, 2.5-inch, 175 psi, Spring Return, Normally Closed, 24 Vac, 2 position with switches

Siemens | B225FC-GCA126.3U

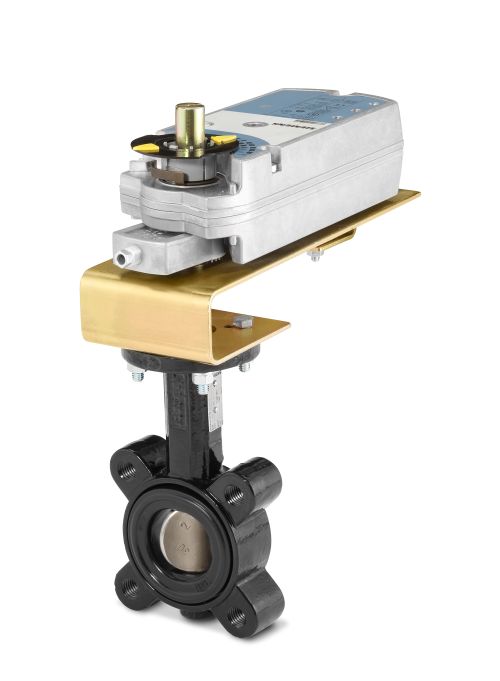

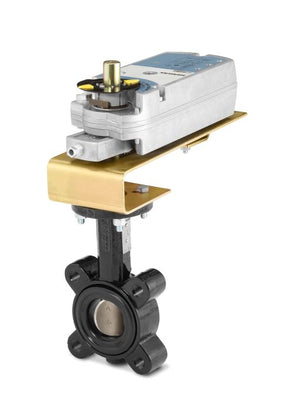

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B225FC-GCA126.3U
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens B225FC-GCA126.3U Documents

Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Submittal Sheet)Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Specification Sheet)Operating Instructions(A-Series Industrial Electric Actuator_600 to 18.000 lb-in_Installation. Operation and Maintenance Manual) More Info

Overview

Details for B225FC-GCA126.3U

BFV 2W 2.5" 175PSI SR NC 24VAC 2 POS W/SW

Standard Temp Commercial Butterfly Valve Assembly, 2-way, 2.5-inch, 175 psi, Spring Return, Normally Closed, 24 Vac, 2 position with switches

Specifications

Valve Size
2.5 in
Flow Coefficient, Cv
282
Valve Type
Two-way
Valve Body Style
Rotary-Butterfly
Port Configuration
2-Way Normally closed
End Connection
Lug
Trim Material
Stainless Steel
Butterfly Disc
Full Cut Disc
Butterfly Heater
NO
Medium
Water , Water with anti-freeze
Max GPM
459 gpm
Pressure Class
ANSI 125
High temperature
NO
Max. Inlet Pressure (absolute), Liquid
250 psi
Medium temperature
-20…250 ºF
Close-off Pressure
175 psi
Valve Actuator Type
Electronic
Control Signal
2-position
Fail Safe
Yes
Supply Voltage
24 VAC
Auxiliary Switch
Yes
Standard
NEMA 2
