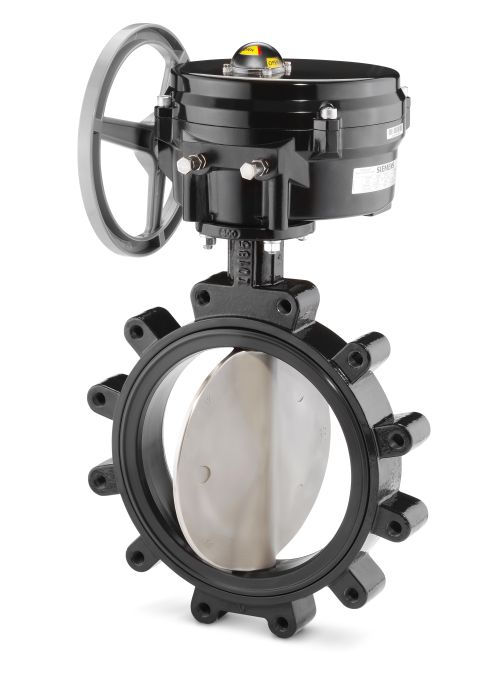

B205FC-HA226.1K | BFV 2W 5" 175PSI 120VAC 2 POS HTR NC | Siemens

High Temp Industrial Butterfly Valve Assembly, 2-way, 5-inch, 175 psi, 120 Vac, 2 position, Heater, Normally Closed

Siemens | B205FC-HA226.1K
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B205FC-HA226.1K
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens B205FC-HA226.1K Documents

Datasheet(A-Series Electric Actuator Technical Specification Sheet)Datasheet(Resilient Seat Butterfly Valves Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Specification Sheet)Datasheet(A Series Industrial Electric Actuator Technical Instructions)Operating Instructions(A-Series Industrial Electric Actuator_600 to 18.000 lb-in_Installation. Operation and Maintenance Manual)Datasheet for Actuator(A-Series Electric Actuator Technical Specification Sheet) More Info

Overview

Details for B205FC-HA226.1K

BFV 2W 5" 175PSI 120VAC 2 POS HTR NC

High Temp Industrial Butterfly Valve Assembly, 2-way, 5-inch, 175 psi, 120 Vac, 2 position, Heater, Normally Closed

Specifications

Valve Size
5 in
Flow Coefficient, Cv
1376
Valve Type
Two-way
Valve Body Style
Rotary-Butterfly
Port Configuration
2-Way Normally closed
End Connection
Lug
Trim Material
Stainless Steel
Butterfly Disc
Full Cut Disc
Butterfly Heater
YES
Medium
Water , Water with anti-freeze
Max GPM
1838 gpm
Pressure Class
ANSI 125
High temperature
YES
Max. Inlet Pressure (absolute), Liquid
250 psi
Medium temperature
-20…250 ºF
Close-off Pressure
175 psi
Valve Actuator Type
Electronic
Control Signal
2-position
Fail Safe
No
Supply Voltage
120 VAC
Auxiliary Switch
Yes
Standard
NEMA 4
