B202FO-GCA161.3U | BFV 2W 2" 175PSI SR NO 24VAC 0-10DC | Siemens

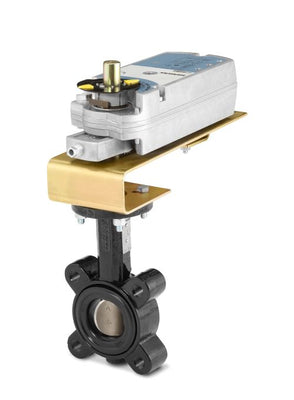

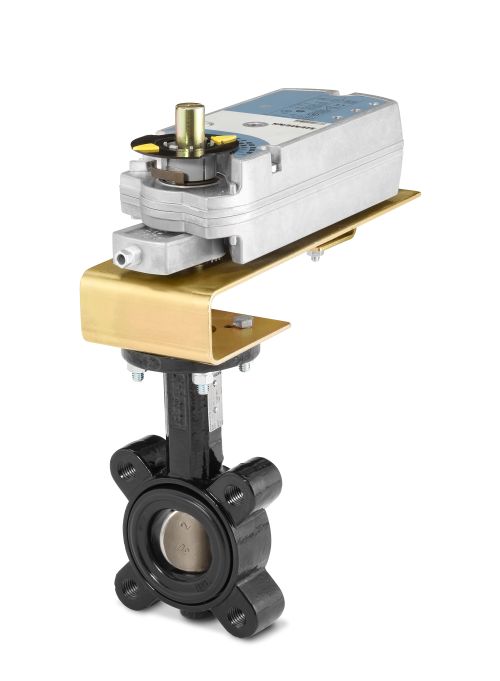

Standard Temp Commercial Butterfly Valve Assembly, 2-way, 2-inch, 175 psi, Spring Return, Normally Open, 24 Vac, 0-10 Vdc
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B202FO-GCA161.3U
Documents and manuals
Siemens B202FO-GCA161.3U Documents
Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Submittal Sheet)Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Specification Sheet)Operating Instructions(A-Series Industrial Electric Actuator_600 to 18.000 lb-in_Installation. Operation and Maintenance Manual) More Info
Overview
Details for B202FO-GCA161.3U
BFV 2W 2" 175PSI SR NO 24VAC 0-10DC
Standard Temp Commercial Butterfly Valve Assembly, 2-way, 2-inch, 175 psi, Spring Return, Normally Open, 24 Vac, 0-10 Vdc
Specifications
- Valve Size
- 2 in
- Flow Coefficient, Cv
- 61
- Valve Type
- Two-way
- Valve Body Style
- Rotary-Butterfly
- Port Configuration
- 2-Way Normally open
- End Connection
- Lug
- Trim Material
- Stainless Steel
- Butterfly Disc
- Full Cut Disc
- Butterfly Heater
- NO
- Medium
- Water , Water with anti-freeze
- Max GPM
- 294 gpm
- Pressure Class
- ANSI 125
- High temperature
- NO
- Max. Inlet Pressure (absolute), Liquid
- 250 psi
- Medium temperature
- -20…250 ºF
- Close-off Pressure
- 175 psi
- Valve Actuator Type
- Electronic
- Control Signal
- 0...10 Vdc
- Fail Safe
- Yes
- Supply Voltage
- 24 VAC
- Auxiliary Switch
- No
- Standard
- NEMA 2
