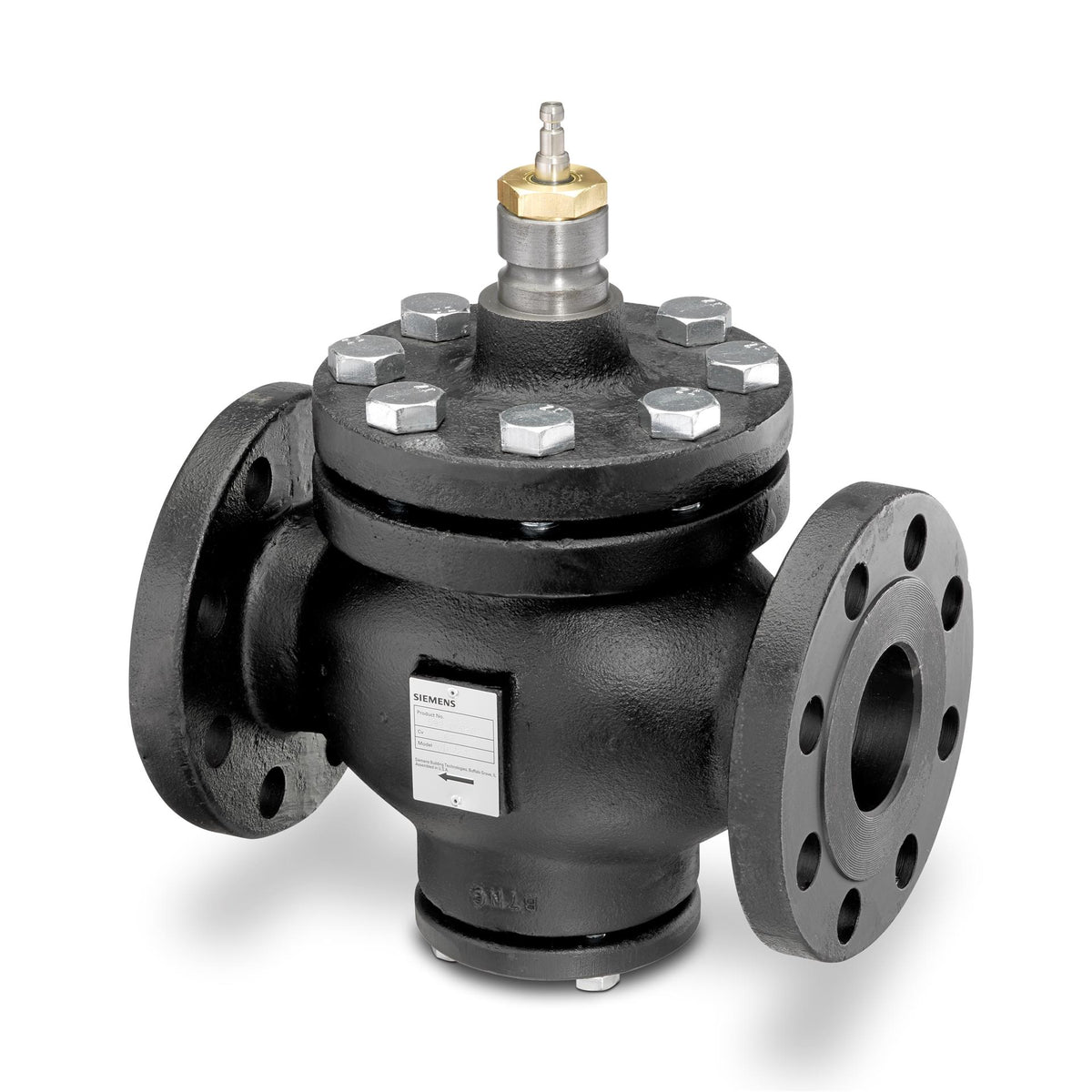

599-06625 | Flowrite two-way 2 1/2 inch high close-off valve. ANSI 250, NC, SS trim. | Siemens

Flowrite 599 Series High Close-off 2-way 2-1/2 inch valve flanged iron body ANSI 250 , NC, Equal Percentage flow; Stainless steel trim.

Brand: SiemensSKU: 599-06625
Siemens | 599-06625
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06625
Jump to: Overview & Specifications Reviews

Overview Details for 599-06625

Flowrite two-way 2 1/2 inch high close-off valve. ANSI 250, NC, SS trim.

Flowrite 599 Series High Close-off 2-way 2-1/2 inch valve flanged iron body ANSI 250 , NC, Equal Percentage flow; Stainless steel trim.

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally closed
End Connection
Flanged
Connecting thread
Universal bonnet for direct-coupled actuators
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
DN
65
Leakage rate
ANSI Leakage Class IV
Leakage rate, class
ANSI Leakage Class IV
Rangeability
100:1
Medium temperature
20…250 ºF
Stroke
20 mm, 0.75 " mm
Stroke, mm
20 mm
Dimensions (W x H x D)
11.5 x 14.37 x 7.52 in
