599-06623 | Flowrite two-way 5-inch high close-off valve. ANSI 250, NO, SS trim. | Siemens

Flowrite 599 Series High Close-off 2-way 5-inch valve, flanged iron body ANSI 250, NO, Equal Percentage flow; Stainless steel trim.

Siemens | 599-06623

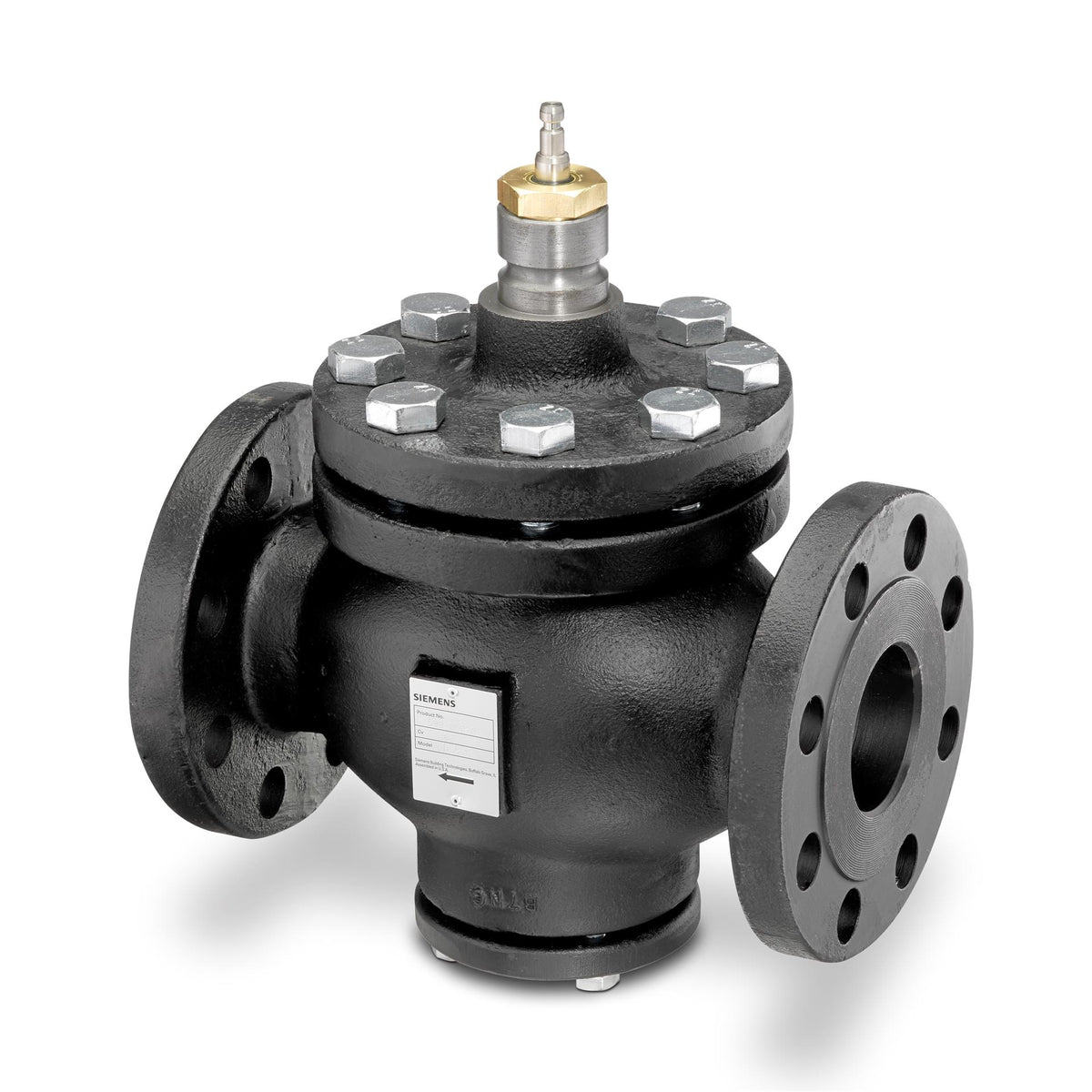

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06623
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens 599-06623 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06623

Flowrite two-way 5-inch high close-off valve. ANSI 250, NO, SS trim.

Flowrite 599 Series High Close-off 2-way 5-inch valve, flanged iron body ANSI 250, NO, Equal Percentage flow; Stainless steel trim.

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
Flanged
Connecting thread
Universal bonnet for direct-coupled actuators
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
DN
125
Leakage rate
ANSI Leakage Class IV
Leakage rate, class
ANSI Leakage Class IV
Rangeability
100:1
Medium temperature
20…250 ºF
Stroke
40 mm, 1.5 " mm
Stroke, mm
40 mm
Dimensions (W x H x D)
16.61 x 18.54 x 10.98 in
