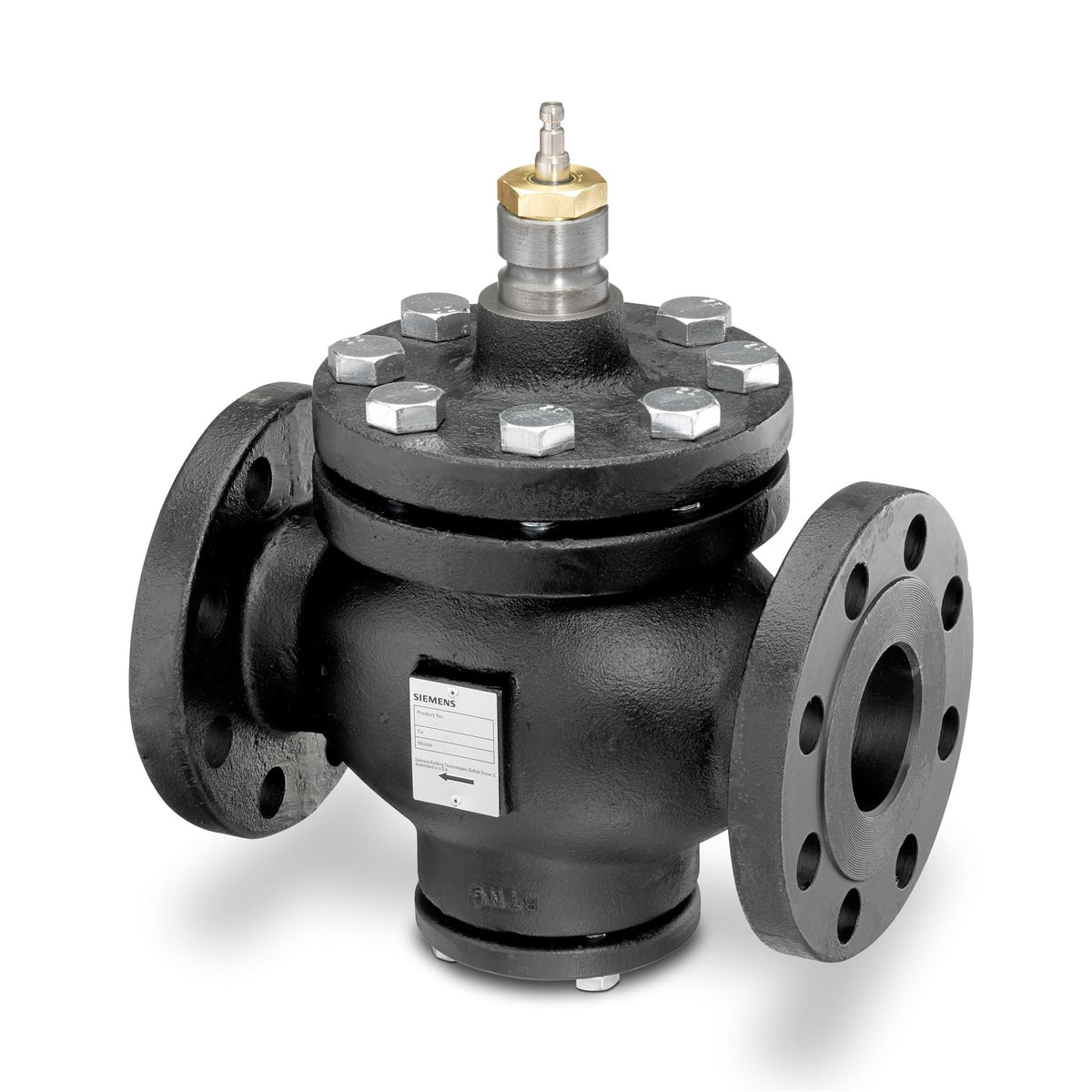

599-06612 | Flowrite two-way 4- inch high close-off valve. ANSI 125, NO, SS trim. | Siemens
Flowrite 599 Series High Close-off 2-way valve 4-inch valve, flanged iron body ANSI 125 , NO, Equal Percentage flow; Stainless steel trim.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06612
Documents and manuals
Siemens 599-06612 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06612
Flowrite two-way 4- inch high close-off valve. ANSI 125, NO, SS trim.
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 100
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 40 mm, 1.5 " mm
- Stroke, mm
- 40 mm
- Dimensions (W x H x D)
- 13.86 x 16.97 x 9.02 in
