599-06179 | Flowrite 6" Flanged, 3W Valve, 400Cv, Stainless Steel Trim, ANSI 250 | Siemens

The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, stainless steel trim, flanged connections, 6" line size, 400 Cv flow rate and is ANSI Class 250.

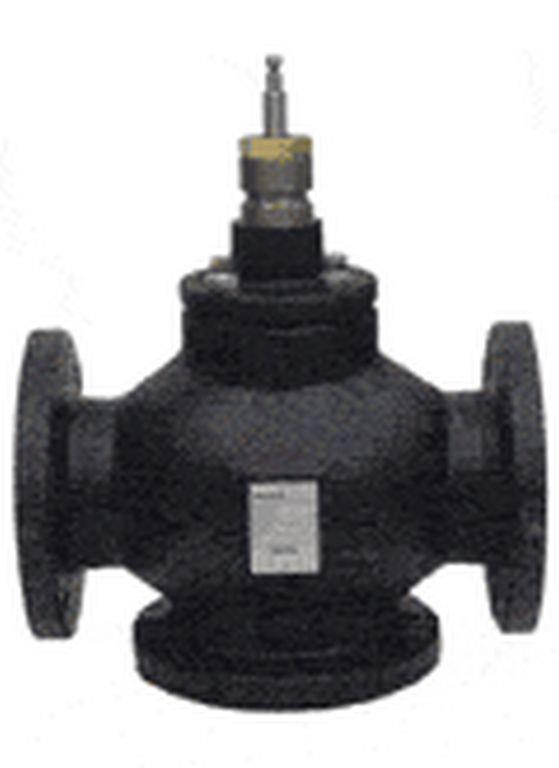

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06179

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 599-06179 Documents

Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06179

Flowrite 6" Flanged, 3W Valve, 400Cv, Stainless Steel Trim, ANSI 250

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 3-Way Mixing
End Connection: Flanged
Connecting thread: Valve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 150
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
Medium temperature: 20…250 ºF
Stroke: 1-1/2 in., 40 mm
Dimensions (W x H x D): 18.62 x 18.86 x 13.39 in
