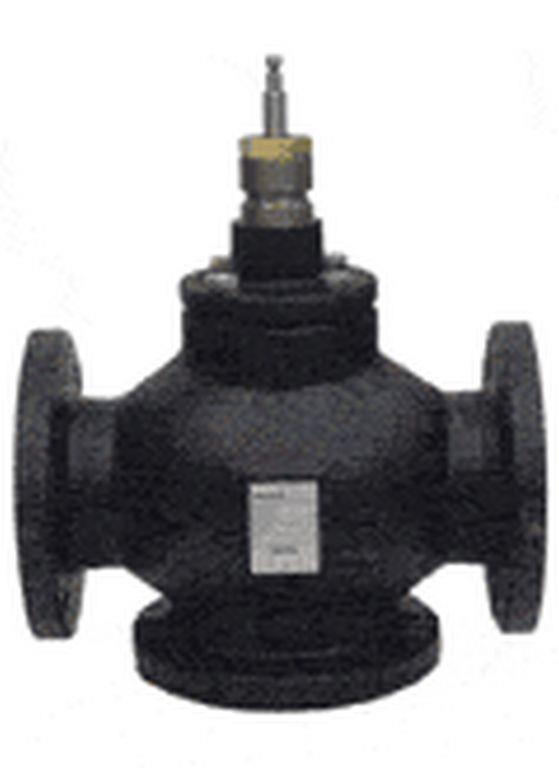

599-06171 | Flowrite 3" Flanged, 3W Valve, 100Cv, Bronze Trim, ANSI 250 | Siemens
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, flanged connections, 3" line size, 100 Cv flow rate and is ANSI Class 250.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06171
Documents and manuals
Siemens 599-06171 Documents
Datasheet(Flowrite VF 599 series Valves. 2-1/2 to 6-Inch. Flanged. ANSI Class 250. Iron Body Submittal Sheet)Datasheet(Flowrite VF 599 Series. Three-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06171
Flowrite 3" Flanged, 3W Valve, 100Cv, Bronze Trim, ANSI 250
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, bronze trim, flanged connections, 3" line size, 100 Cv flow rate and is ANSI Class 250.Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Mixing
- End Connection
- Flanged
- Connecting thread
- Valve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Bronze , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 80
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 3/4 in., 20 mm
- Dimensions (W x H x D)
- 12.52 x 14.09 x 8.7 in
