599-06166 | Flowrite 3" Flanged, 3W Valve, 100Cv, Stainless Steel Trim, ANSI 125 | Siemens
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, stainless steel trim, flanged connections, 3" line size, 100 Cv flow rate and is ANSI Class 125.

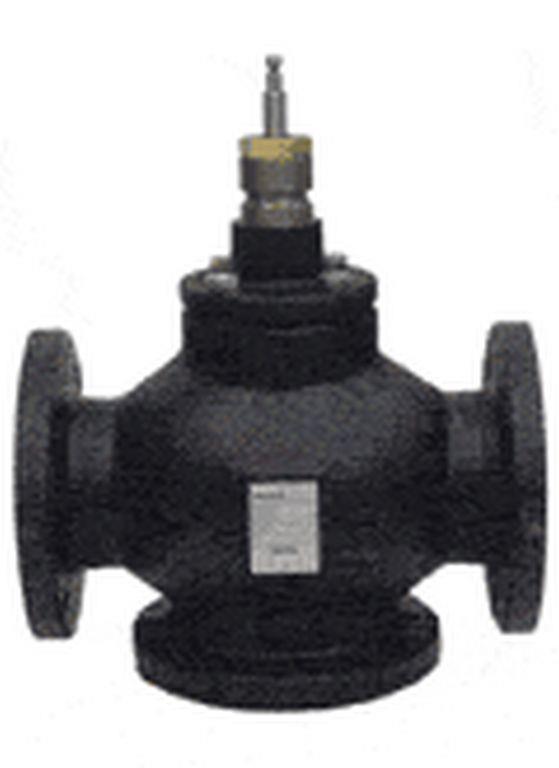

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06166
Documents and manuals
Overview
Details for 599-06166
Flowrite 3" Flanged, 3W Valve, 100Cv, Stainless Steel Trim, ANSI 125
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, stainless steel trim, flanged connections, 3" line size, 100 Cv flow rate and is ANSI Class 125.Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Mixing
- End Connection
- Flanged
- Connecting thread
- Valve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 80
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 3/4 in., 20 mm
- Dimensions (W x H x D)
- 11.77 x 14.09 x 8.7 in
