599-06165 | Flowrite 2-1/2" Flanged, 3W Valve, 63Cv, Stainless Steel Trim, ANSI 125 | Siemens

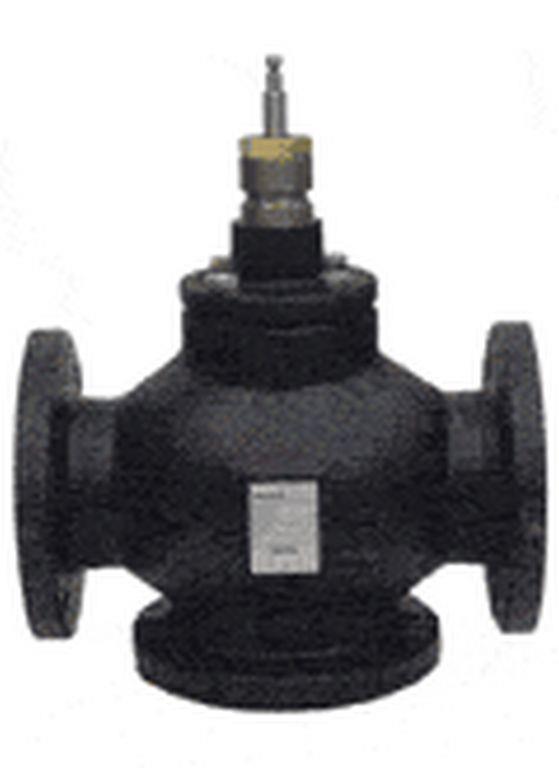

The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, stainless steel trim, flanged connections, 2-1/2" line size, 63 Cv flow rate and is ANSI Class 125.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06165
Documents and manuals
Overview
Details for 599-06165
Flowrite 2-1/2" Flanged, 3W Valve, 63Cv, Stainless Steel Trim, ANSI 125
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, stainless steel trim, flanged connections, 2-1/2" line size, 63 Cv flow rate and is ANSI Class 125.Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Mixing
- End Connection
- Flanged
- Connecting thread
- Valve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 65
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 3/4 in., 20 mm
- Dimensions (W x H x D)
- 10.87 x 12.8 x 7.48 in
