599-04321-4.5 | 599-04321-4.5, 1/2 PICV, 4.5 GPM NO | Siemens

1/2-PICV, 4.5 GPM NO

Brand: SiemensSKU: 599-04321-4.5

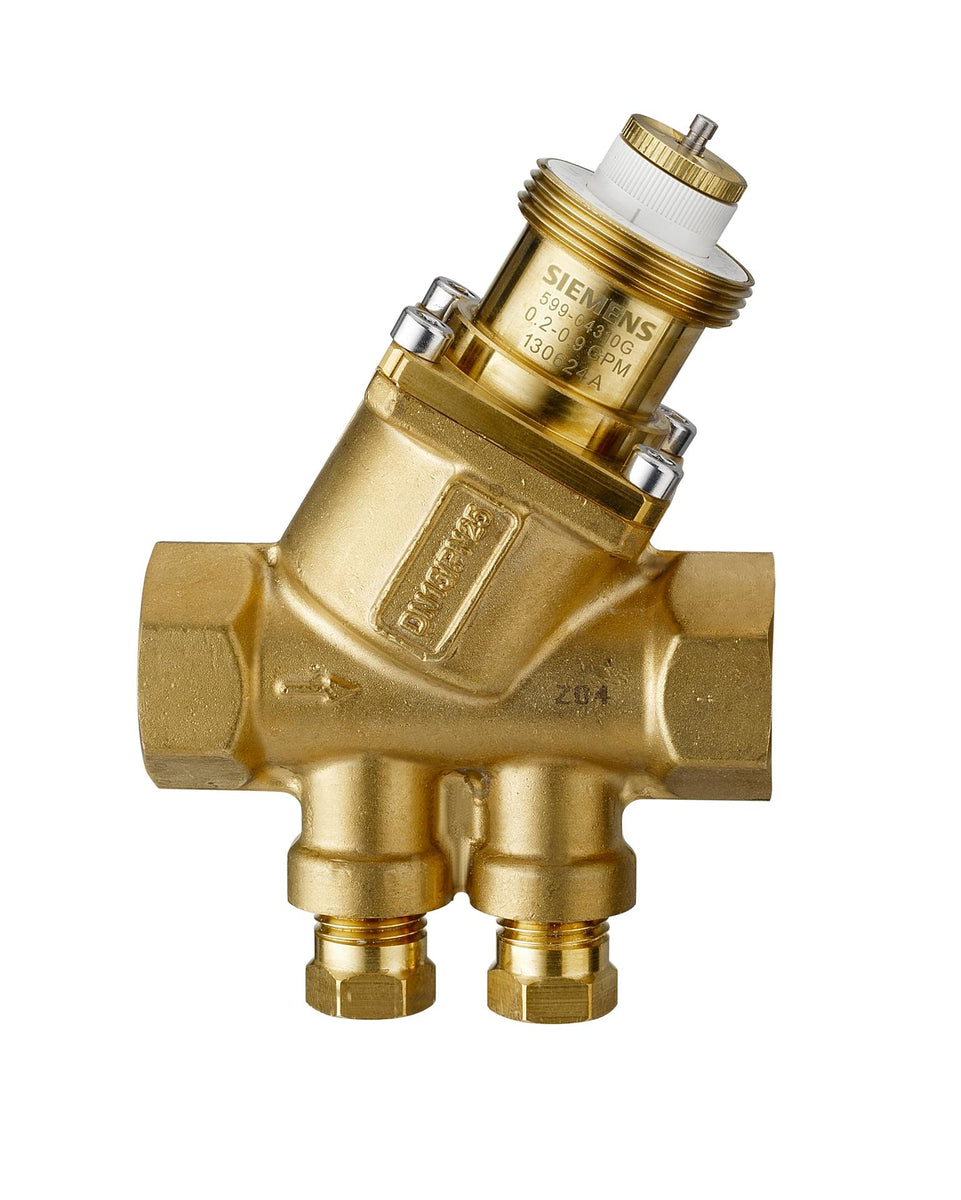

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 599-04321-4.5

599-04321-4.5, 1/2 PICV, 4.5 GPM NO

1/2-PICV, 4.5 GPM NO

Valve Size: 0.5 in
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Trim Material: Brass
Material, inside set: Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 5.8 gpm
DN: 15
Min GPM: 1 gpm
Preset GPM: 4.5 gpm
Pressure Class: ANSI 250
Leakage rate: ANSI Class IV (0.01%) @ 200 psi
Leakage rate, class: ANSI Class IV
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5 mm
Close-off Pressure: 200 psi
