371-03202 | Valve assy 3W Mix 3/4" 6.3Cv Eq Pct/Lin Brass Trim FxF, Prop Elect Act NSR | Siemens

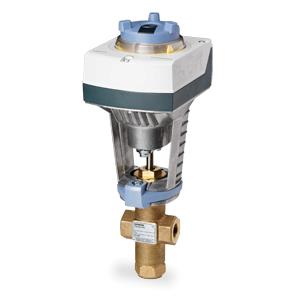

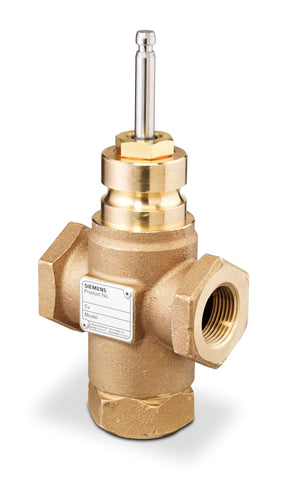

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electronic actuator. The 3-way, mixing, 3/4-inch, 6.3 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and female x female end connections.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 371-03202
Documents and manuals
Siemens 371-03202 Documents
Datasheet(3-Way 1/2-2-Inch Valve ANSI Class Bronze Body Submittal Sheet)Datasheet(Flowrite 599 Series 3-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet(SAX Electronic Valve Actuator Non Spring Return. 24 Vac. Proportional Control Technical Instructions)Installation instruction(SAX Electronic Valve Actuator Installation Instructions)Datasheet for Actuator(SAX Electronic Valve Actuator Non Spring Return. 24 Vac. Proportional Control Technical Instructions) Installation Instructions More Info
Overview
Details for 371-03202
Valve assy 3W Mix 3/4" 6.3Cv Eq Pct/Lin Brass Trim FxF, Prop Elect Act NSR
Specifications
- Valve Type
- Three-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Mixing
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- UNS CA 844 bronze
- Material, inside set
- Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium
- Water , Water with anti-freeze
- High temperature
- NO
- Medium temperature
- 20…250 ºF
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
