371-03116 | Valve assy 2W NO, 2" 40Cv Eq Pct SS Trim FxF, El-Hydraul Act 4-20 mA | Siemens

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electronic actuator. The 2-way, normally open, 2-inch, 40 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and female x female end connections.

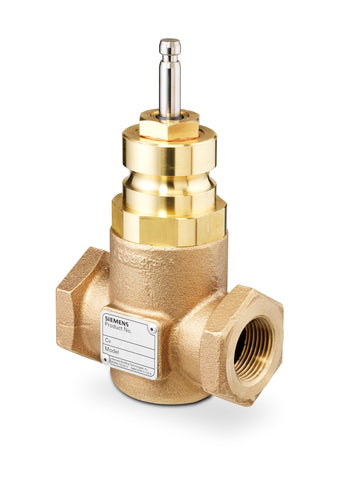

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 371-03116

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 371-03116 Documents

Datasheet(Flowrite 599 Series 2-Way Valves. 1/2 to 2-Inch Threaded. ANSI Class 250. Bronze Body Submittal Sheet)Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet(SAX Electronic Valve Actuator Non Spring Return. 24 Vac. Proportional Control Technical Instructions)Installation instruction(SAX Electronic Valve Actuator Installation Instructions)Datasheet for Actuator(SAX Electronic Valve Actuator Non Spring Return. 24 Vac. Proportional Control Technical Instructions) Installation Instructions More Info

Overview

Details for 371-03116

Valve assy 2W NO, 2" 40Cv Eq Pct SS Trim FxF, El-Hydraul Act 4-20 mA

Specifications

Valve Type: Two-way
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: FxF
Connecting thread: Direct-coupled universal bonnet
Material, valve body: UNS CA 844 bronze
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium: Saturated steam , Water , Water with anti-freeze , Steam
High temperature: NO
Medium temperature: 20…250 ºF
Valve Actuator Type: Electronic
Normally Open/Normally Closed: Normally Open
Supply Voltage: 24 VAC
