363-02052 | MT Series 2W Valve assy ANSI 250 NO Mod Eq Pct 1/2" FxUM 1Cv 24V float NSR | Siemens

This Powermite 599 MT Series Valve Assembly features a 24V, non-spring return, electro-mechanical actuator with floating control. The 1/2 in. line size, 2-way normally open assembly has a 1 Cv flow rate, stainless steel trim, FxUM connection, and a modified equal percentage flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.

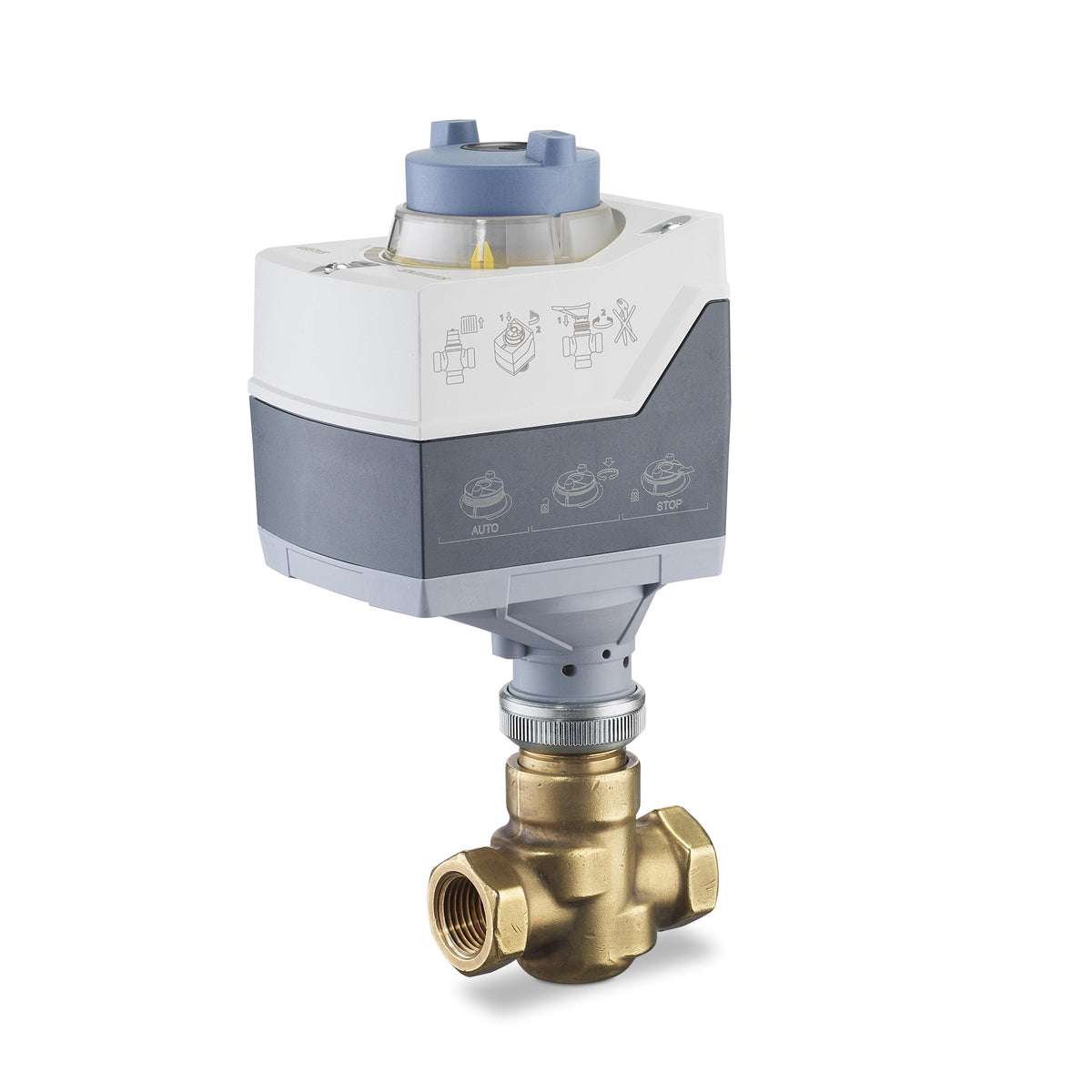

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 363-02052

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 363-02052 Documents

Datasheet(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet)Datasheet(Powermite 599 Series MT Series Terminal Unit 2-way Valves Technical Instructions)Datasheet(Powermie 599 MT Series SAS Electronic Valve Actuator. 24 Vac or 24 Vdc. Floating Control (3-Position) Technical Instructions)Datasheet for Actuator(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet) More Info

Overview

Details for 363-02052

MT Series 2W Valve assy ANSI 250 NO Mod Eq Pct 1/2" FxUM 1Cv 24V float NSR

Specifications

Valve Type: Two-way
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: FxUM
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Brass
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
Leakage rate: Class IV (0.01% of Cv)
Permissible operating pressure: Max. differential pressure for modulating service: Liquid=50 psi (345 kPa); Steam=15 psi (103 kPa)
Medium temperature: 35…250 ºF
Stroke: 7/32 in
Valve Actuator Type: Electronic
Normally Open/Normally Closed: Normally Open
Supply Voltage: 24 VAC
Positioning time: 30 s
Power consumption: 2.5 VA
