363-02008 | MT Series 2W Valve assy ANSI 250 NC Mod Eq Pct 1/2" FxF 2.5Cv 24V float NSR | Siemens
This Powermite 599 MT Series Valve Assembly features a 24V, non-spring return, electro-mechanical actuator with floating control. The 1/2 in. line size, 2-way normally closed assembly has a 2.5 Cv flow rate, brass trim, FxF connection, and a modified equal percentage flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.

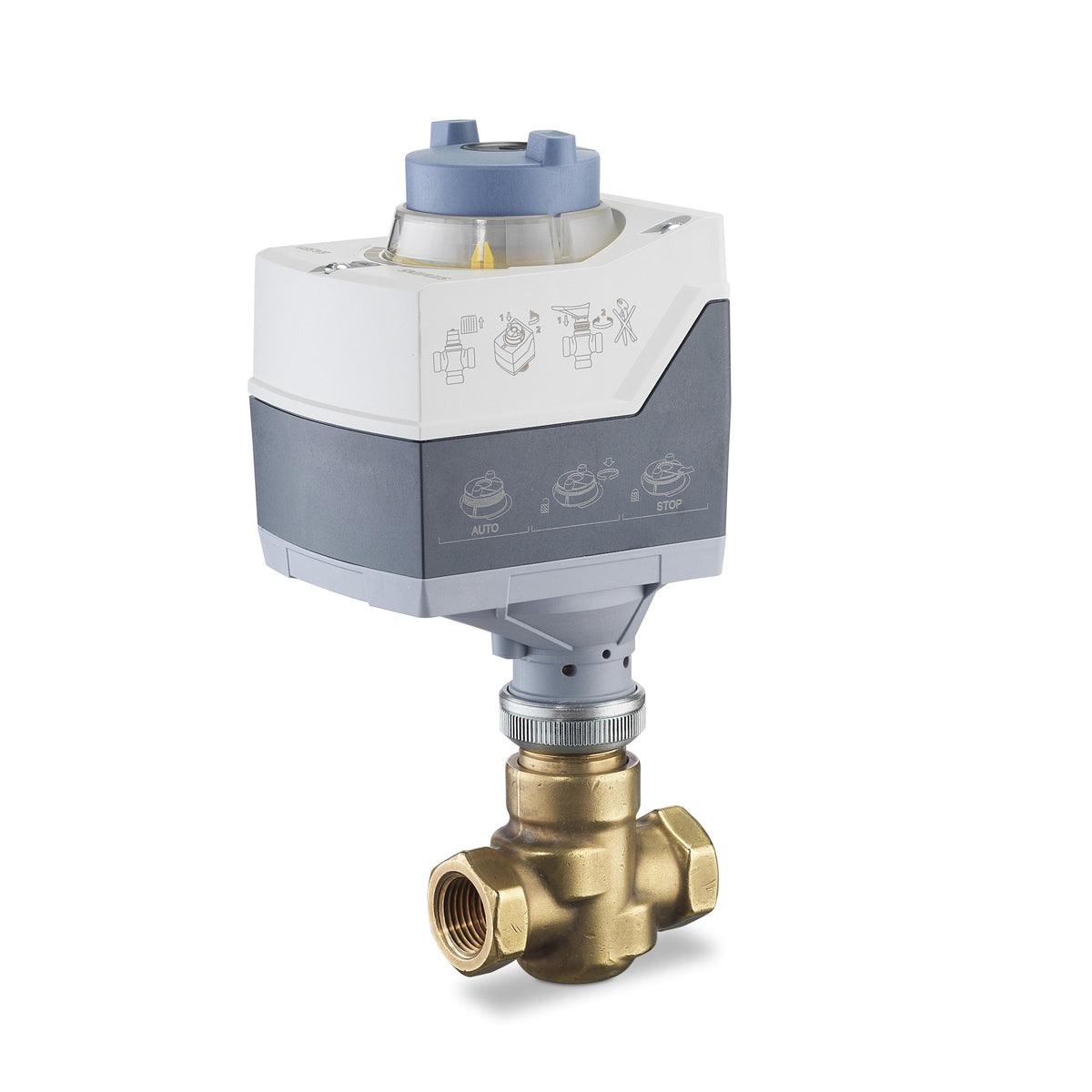

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 363-02008
Documents and manuals
Siemens 363-02008 Documents
Datasheet(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet)Datasheet(Powermite 599 Series MT Series Terminal Unit 2-way Valves Technical Instructions)Datasheet(Powermie 599 MT Series SAS Electronic Valve Actuator. 24 Vac or 24 Vdc. Floating Control (3-Position) Technical Instructions)Datasheet for Actuator(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet) More Info
Overview
Details for 363-02008
MT Series 2W Valve assy ANSI 250 NC Mod Eq Pct 1/2" FxF 2.5Cv 24V float NSR
Specifications
- Valve Type
- Two-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- Brass
- Material, inside set
- Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
- Leakage rate
- Class IV (0.01% of Cv)
- Permissible operating pressure
- Max. differential pressure for modulating service: 25 psi (173 kPa)
- Medium temperature
- 35…250 ºF
- Stroke
- 7/32 in
- Valve Actuator Type
- Electronic
- Normally Open/Normally Closed
- Normally Closed
- Supply Voltage
- 24 VAC
- Positioning time
- 30 s
- Power consumption
- 2.5 VA
