337NC-04316-45 | 2 PICV 45 GPM+MOD SR NC | Siemens

2 PICV 45 GPM+MOD SR NC

Brand: SiemensSKU: 337NC-04316-45

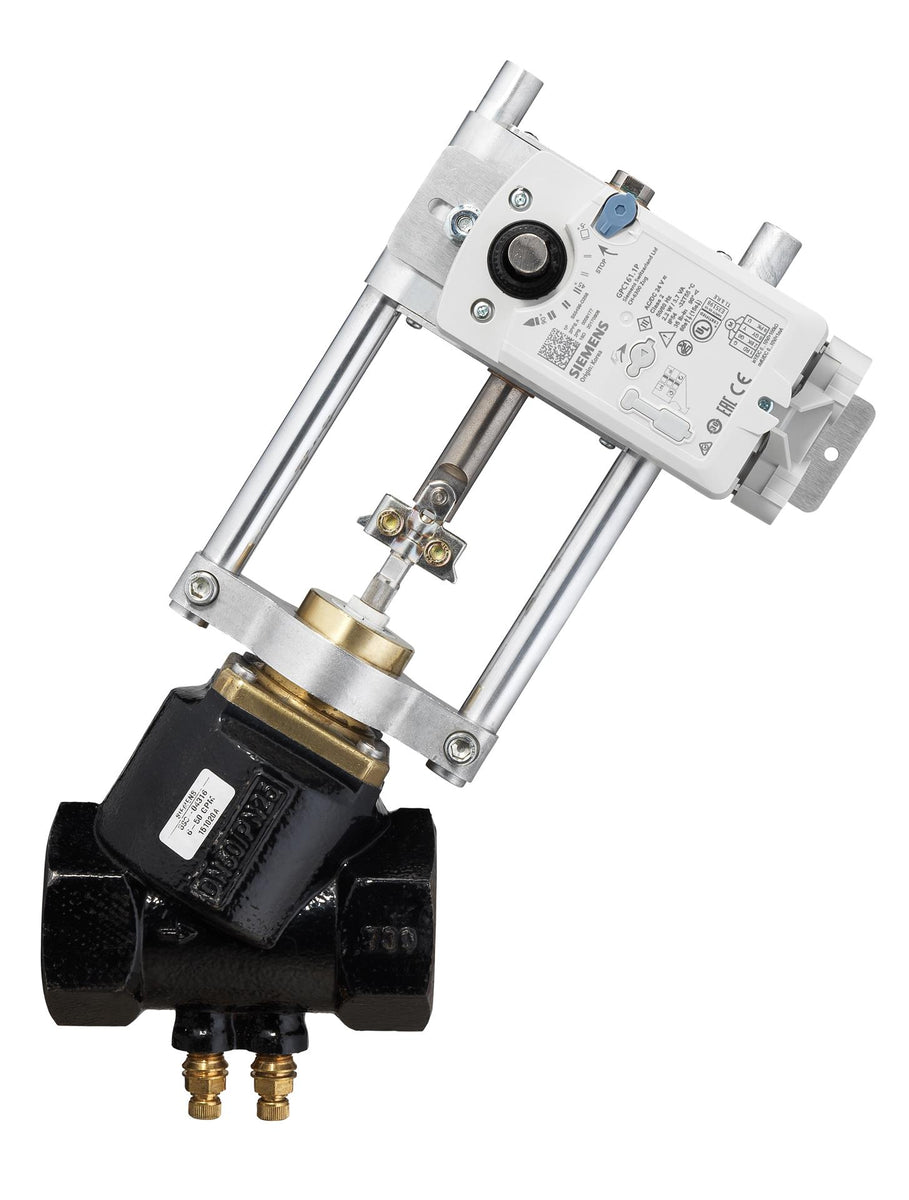

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 337NC-04316-45

2 PICV 45 GPM+MOD SR NC

Valve Size: 2 in
Valve Type: Two-way
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile iron
Trim Material: Brass
Material, inside set: Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 50 gpm
Min GPM: 10 gpm
Preset GPM: 45 gpm
Pressure Class: ANSI 250
Leakage rate: ANSI Class IV (0.01%) @ 100 psi
Rangeability: ≥ 100:1
Max. Inlet Pressure (absolute), Liquid: 400 psi
Max. Differential Pressure, Liquid: 58 psi
Medium temperature: 34…248 ºF
Stroke: 15 mm
Close-off Pressure: 100 psi
Valve Actuator Type: Electronic
Actuation Style: Linear
Normally Open/Normally Closed: Normally Closed
Control Signal: 0...10 Vdc
Fail Safe: Yes
Supply Voltage: 24 VAC/DC
Positioning time: 60 sec
Power consumption: 3.5 VA
Dimensions (W x H x D): 9 x 9 x 16 in
