335-04316-35 | PICV, 2", NO, 35 GPM max flow preset, SAY Actuator, 0-10V or 4-20 mA, NSR | Siemens
Pressure Independent Control Valve, 2 inch, Normally Open, preset to 35 GPM maximum flow (field adjustable), with 24 Vac Electronic SAY Actuator, 0-10V or 4-20 mA, NSR

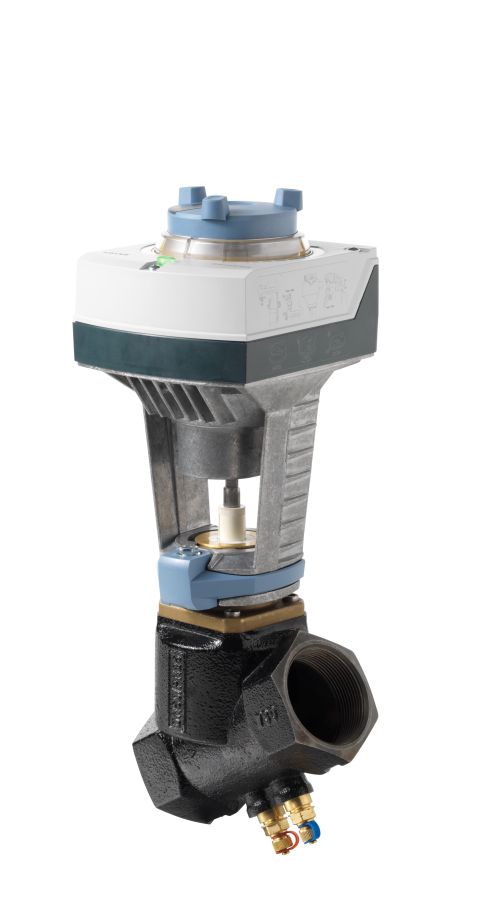

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 335-04316-35
Documents and manuals
Siemens 335-04316-35 Documents
Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions)Datasheet(SAY Electronic Valve Actuator Non-spring Return. 24 Vac. Proportional Control Technical Instructions)Installation instruction(SAY Electronic Valve Actuator Installation Instructions)Datasheet for Actuator(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet) Installation Instructions More Info
Overview
Details for 335-04316-35
PICV, 2", NO, 35 GPM max flow preset, SAY Actuator, 0-10V or 4-20 mA, NSR
Pressure Independent Control Valve, 2 inch, Normally Open, preset to 35 GPM maximum flow (field adjustable), with 24 Vac Electronic SAY Actuator, 0-10V or 4-20 mA, NSRSpecifications
- Valve Type
- Two-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Ductile Iron
- Material, inside set
- Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
- Medium
- Water , Water with anti-freeze
- Max GPM
- 50 gpm
- Min GPM
- 10 gpm
- Preset GPM
- 35 gpm
- Medium temperature
- 34…248 ºF
- Stroke
- 5/8 in
- Valve Actuator Type
- Electronic
- Actuation Style
- Linear
- Normally Open/Normally Closed
- Normally Open
- Supply Voltage
- 24 VAC
- Positioning time
- 30 s
- Power consumption
- 8 VA
