285-06166 | Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged 12" Pneu Act w/ pos | Siemens

Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with factory-mounted positioner, 3/4-inch stroke, and 5 psi span. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.

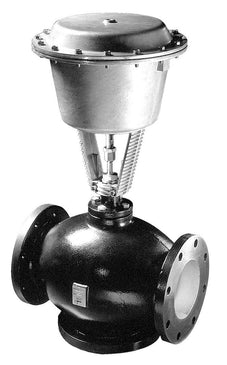

Siemens | 285-06166
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 285-06166

Overview

Details for 285-06166

Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged 12" Pneu Act w/ pos

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
3-Way Mixing
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
