283-06611 | Valve asy Hi Pr Close-off 2W NO 3" 100Cv Eq Pct SS Flange ANSI 125, 8" Pneu Act | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with factory-mounted positioner and 5 psi span. The 2-way, normally open, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage characteristic, stainless steel trim, and flanged end connections.

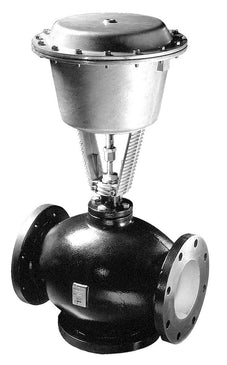

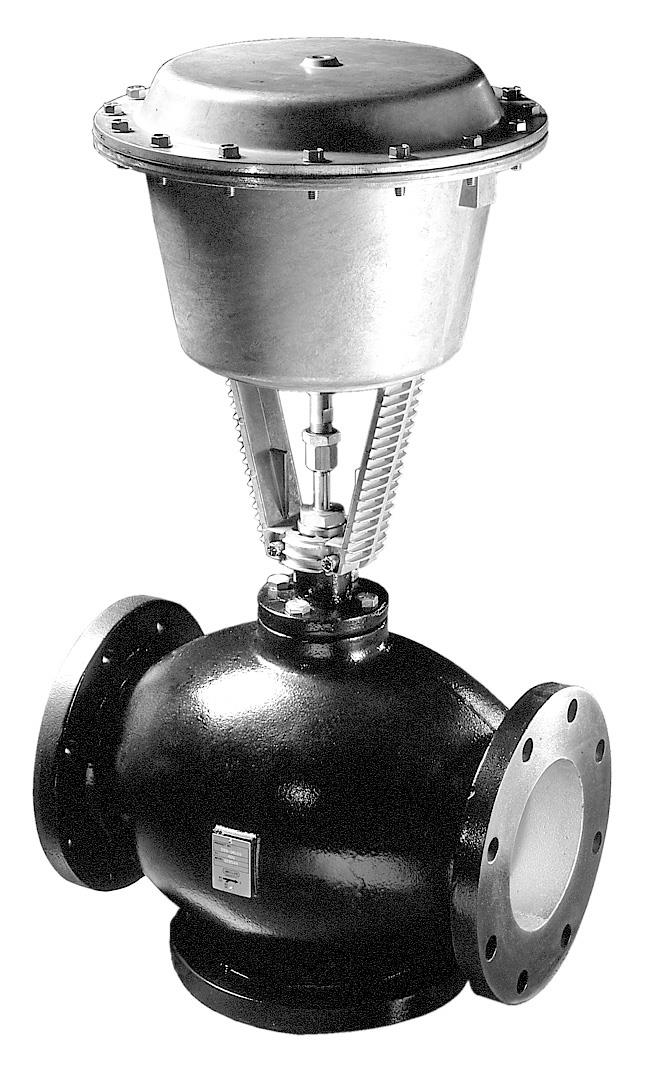

Siemens | 283-06611
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 283-06611

Overview

Details for 283-06611

Valve asy Hi Pr Close-off 2W NO 3" 100Cv Eq Pct SS Flange ANSI 125, 8" Pneu Act

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in
Valve Actuator Type
Pneumatic
