283-03116 | Valve assy 2W NO, 2" 40Cv Eq Pct SS Trim FxF, 8" Pneu Act w/ pos | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with factory-mounted positioner and 5 psi span. The 2-way, normally open, 2-inch, 40 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and female x female end connections.

Siemens | 283-03116

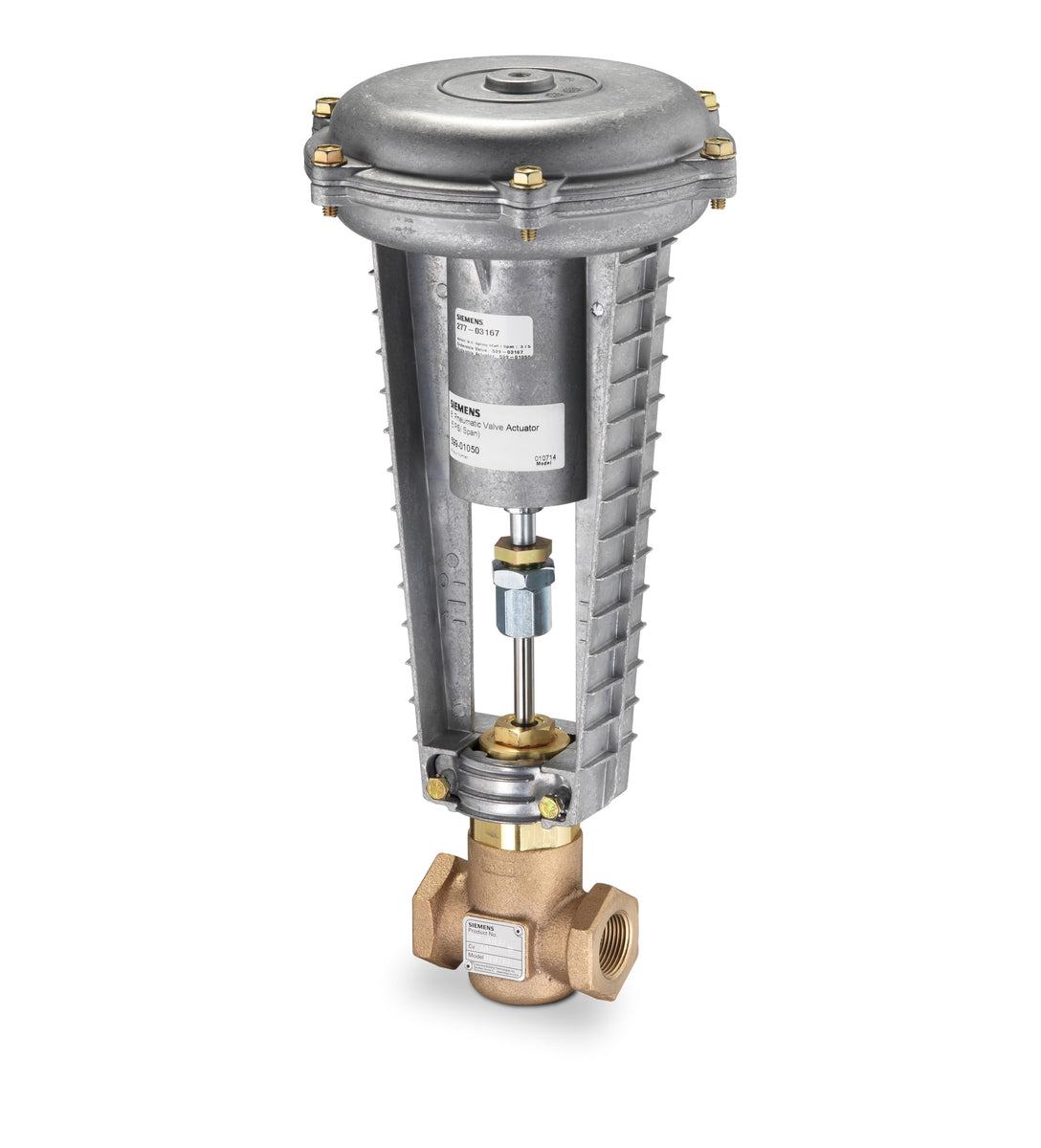

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 283-03116

Overview

Details for 283-03116

Valve assy 2W NO, 2" 40Cv Eq Pct SS Trim FxF, 8" Pneu Act w/ pos

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
