281-05983 | Valve assy 2W NO, 5" 250Cv Eq Pct Bronze Trim Flanged 12" Pneu Act | Siemens

Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with 1-1/2-inch stroke and 5 psi span. The 2-way, normally open, 5-inch, 250 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 125 and has an equal percentage characteristic, brass trim, and flanged end connections.

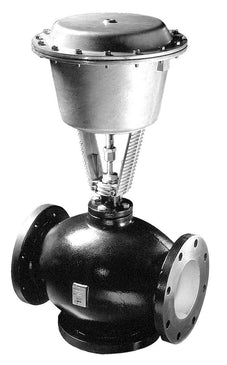

Siemens | 281-05983
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 281-05983

Overview

Details for 281-05983

Valve assy 2W NO, 5" 250Cv Eq Pct Bronze Trim Flanged 12" Pneu Act

Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with 1-1/2-inch stroke and 5 psi span. The 2-way, normally open, 5-inch, 250 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 125 and has an equal percentage characteristic, bronze trim, and flanged end connections.

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Bronze , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
1-1/2 in., 40 mm
Valve Actuator Type
Pneumatic
