277-03148 | Valve assy 3W Mix 3/4" 6.3Cv Eq Pct/Lin SS Trim FxF, 8" Pneu Act | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 3-way, mixing, 3/4-inch, 6.3 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and female x female end connections.

Siemens | 277-03148

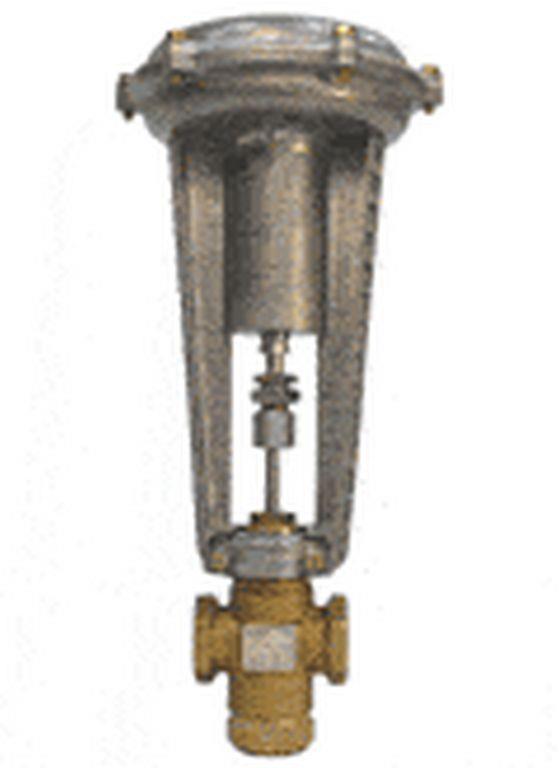

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 277-03148

Overview

Details for 277-03148

Valve assy 3W Mix 3/4" 6.3Cv Eq Pct/Lin SS Trim FxF, 8" Pneu Act

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
3-Way Mixing
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
