276-06161 | Valve assy 3W Mix 3" 100Cv Eq Pct/Lin Bronze Trim Flanged float El-Hydrl Act SR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, brass trim, and flanged end connections.

Siemens | 276-06161

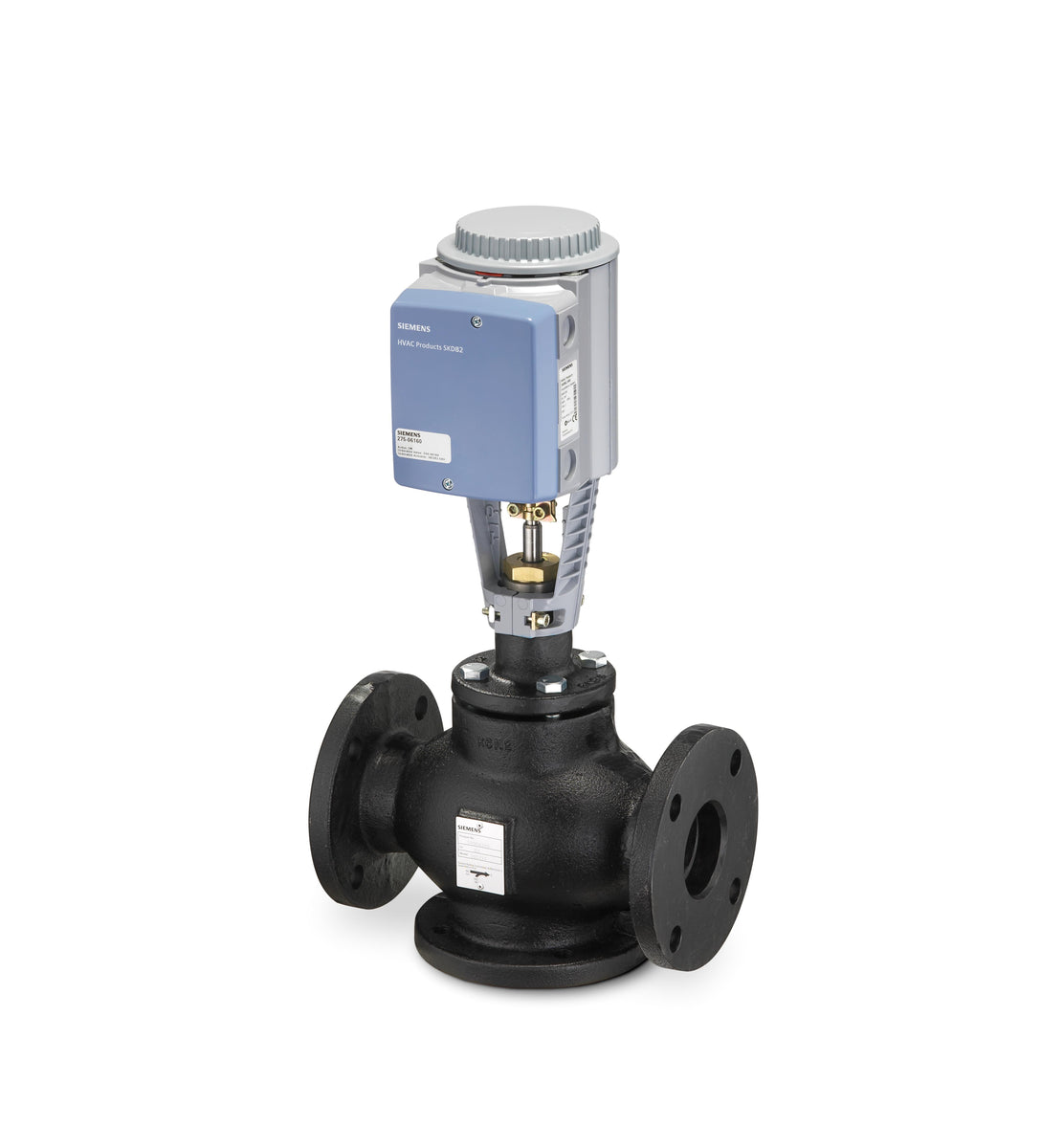

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 276-06161

Overview

Details for 276-06161

Valve assy 3W Mix 3" 100Cv Eq Pct/Lin Bronze Trim Flanged float El-Hydrl Act SR

Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, bronze trim, and flanged end connections.

Specifications

Valve Body Style
Stroke-Globe
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Bronze , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Port Configuration
3-Way Mixing
Medium temperature
20…250 ºF
Ambient temperature, operation
5 to 130 °F, -15 to 55 °C
Stroke
3/4 in., 20 mm
Valve Actuator Type
Electronic
Supply Voltage
24 VAC
Positioning time
Power stroke 120 sec, Return stroke 120 sec, Spring return 8 sec
Power consumption
18 VA
