Documents: 276-06131

Datasheet(Flowrite VF 599 Series Two-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite EA 599 Series SKD Electronic Valve 24 Vac 3-Position (Floating) Control Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Actuator(Electrohydraulic actuators SKD..) More Info

276-06131 | Valve assy Hi Temp 2W NC 3" 100Cv Lin SS Trim Flng float El-Hydraul Act SR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator. The 2-way, normally closed, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and flanged end connections.

Brand: SiemensSKU: 276-06131

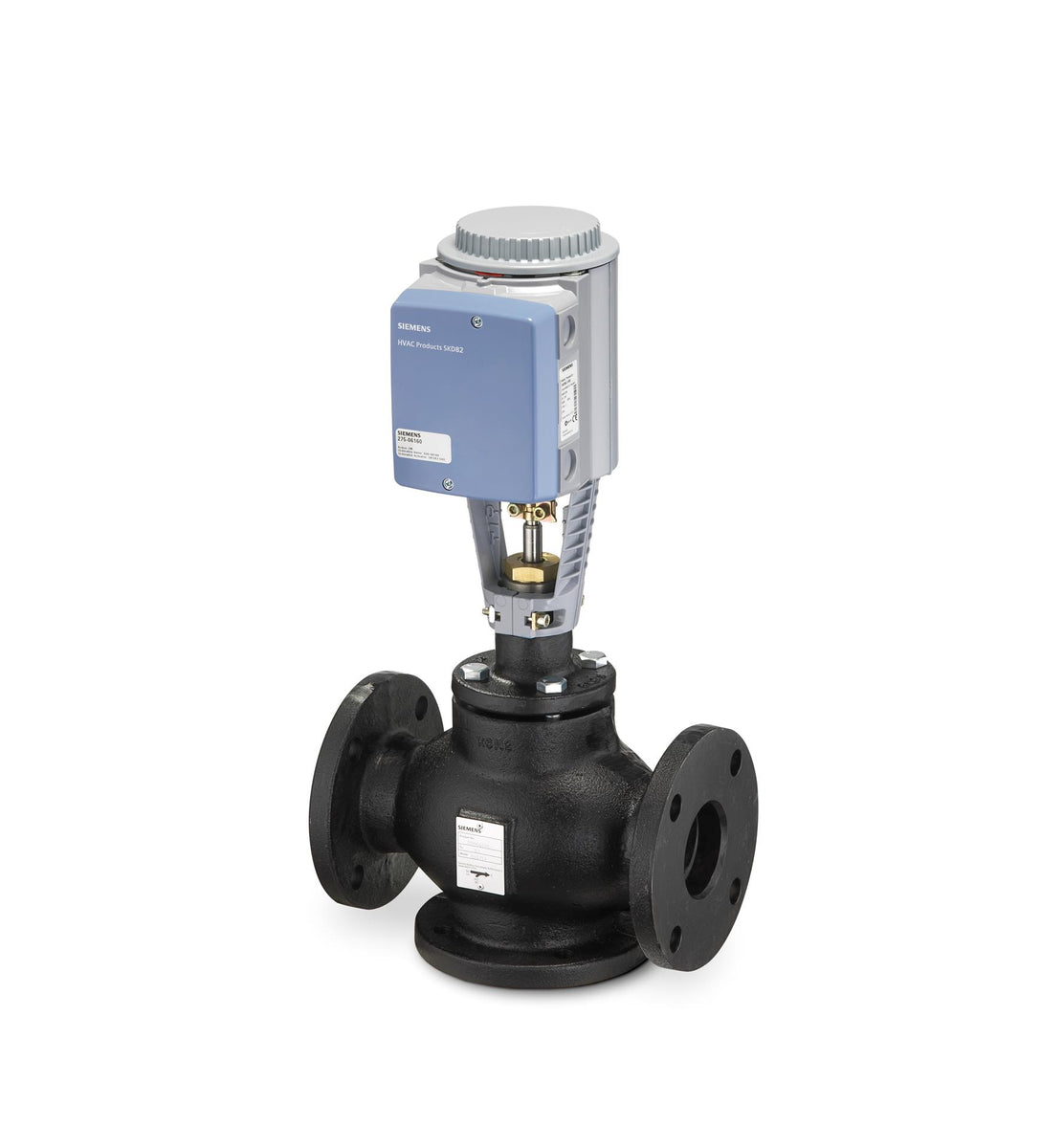

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 276-06131

Jump to: Overview & Specifications Reviews

Overview Details for 276-06131

Valve assy Hi Temp 2W NC 3" 100Cv Lin SS Trim Flng float El-Hydraul Act SR

Specifications

Valve Body Style: Stroke-Globe
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium: Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: YES
Port Configuration: 2-Way Normally closed
Medium temperature: 20…337 ºF
Ambient temperature, operation: 5 to 130 °F, -15 to 55 °C
Stroke: 3/4 in., 20 mm
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Power stroke 120 sec, Return stroke 120 sec, Spring return 8 sec
Power consumption: 18 VA
