275-06160 | Valve asy 3W Mix 2-1/2" 63Cv Eq Pct/Lin Brnze Trim Flanged float El-Hyd Act NSR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, non-spring return, 24 Vac electro-mechanical actuator. The 3-way, mixing, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, brass trim, and flanged end connections.

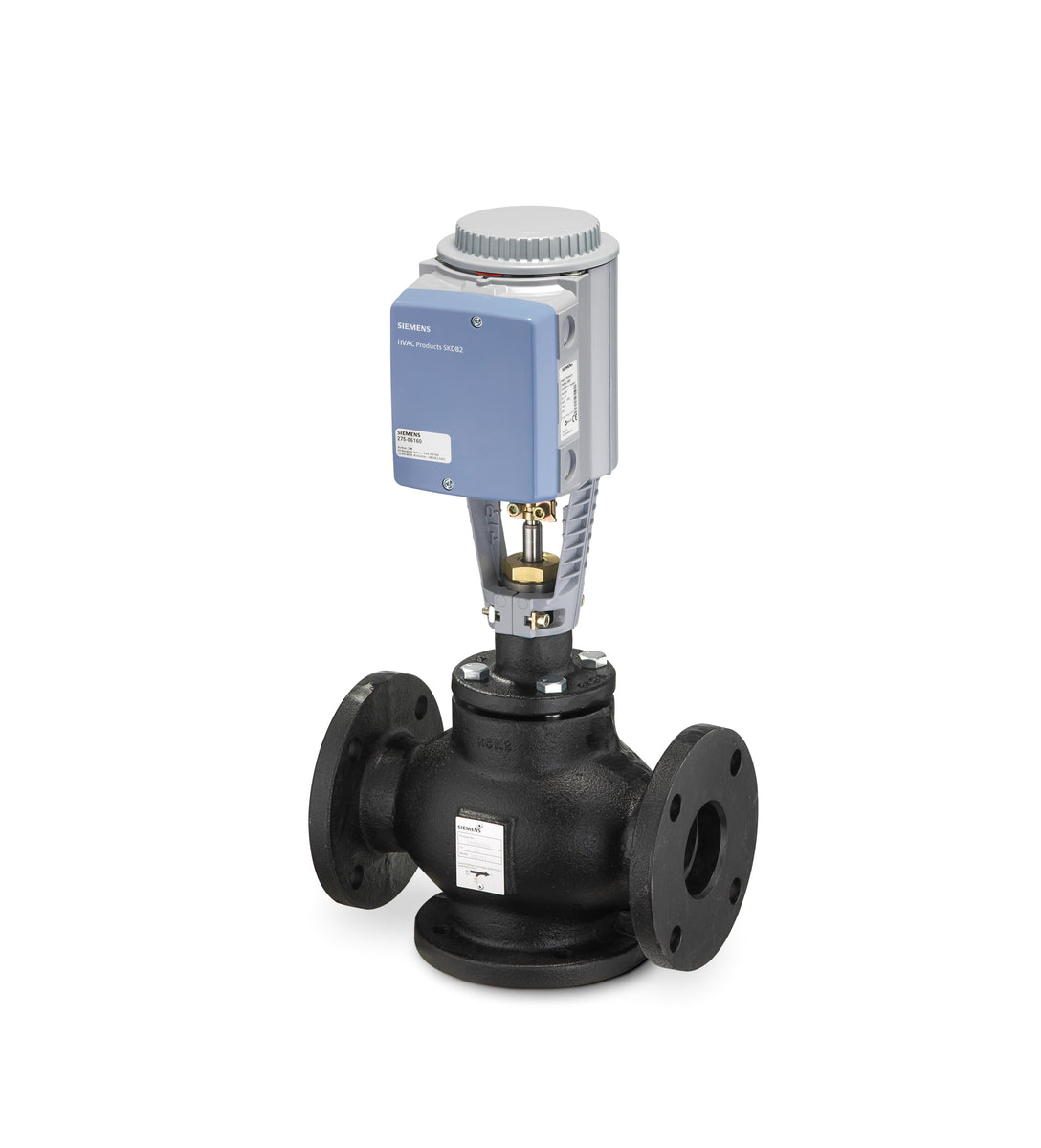

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 275-06160

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 275-06160 Documents

Datasheet(Flowrite 599 Series 2-1/2 to 6-Inch Valves ANSI 125 Submittal Sheet)Datasheet(Flowrite EA 599 Series SKD Electronic Valve 24 Vac 3-Position (Floating) Control Technical Instructions)Datasheet(Flowrite VF 599 Series. Three-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Actuator(Electrohydraulic actuators SKD..) More Info

Overview

Details for 275-06160

Valve asy 3W Mix 2-1/2" 63Cv Eq Pct/Lin Brnze Trim Flanged float El-Hyd Act NSR

Specifications

Valve Body Style: Stroke-Globe
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Bronze , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: NO
Port Configuration: 3-Way Mixing
Medium temperature: 20…250 ºF
Ambient temperature, operation: 5 to 130 °F, -15 to 55 °C
Stroke: 3/4 in., 20 mm
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Power stroke 120 sec, Return stroke 120 sec
Power consumption: 13 VA
