275-03114 | Valve assy 2W NO, 1-1/4" 16Cv Eq Pct SS Trim FxF, float El-Hydraul Act NSR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, non-spring return, 24 Vac electro-mechanical actuator. The 2-way, normally open, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and female x female end connections.

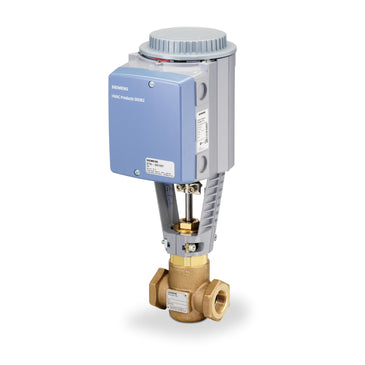

Siemens | 275-03114
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 275-03114

Overview

Details for 275-03114

Valve assy 2W NO, 1-1/4" 16Cv Eq Pct SS Trim FxF, float El-Hydraul Act NSR

Specifications

Valve Body Style
Stroke-Globe
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Port Configuration
2-Way Normally open
Medium temperature
20…250 ºF
Ambient temperature, operation
5 to 130 °F, -15 to 55 °C
Stroke
3/4 in., 20 mm
Valve Actuator Type
Electronic
Supply Voltage
24 VAC
Positioning time
Power stroke 90 sec, Return stroke 90 sec
Power consumption
10 VA
