267-03077 | Valve assy 2W NC 1" 10Cv, Lin, SS Trim Hi Temp Pkg FxF Prop El-Hydraul Act NSR | Siemens

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

Siemens | 267-03077

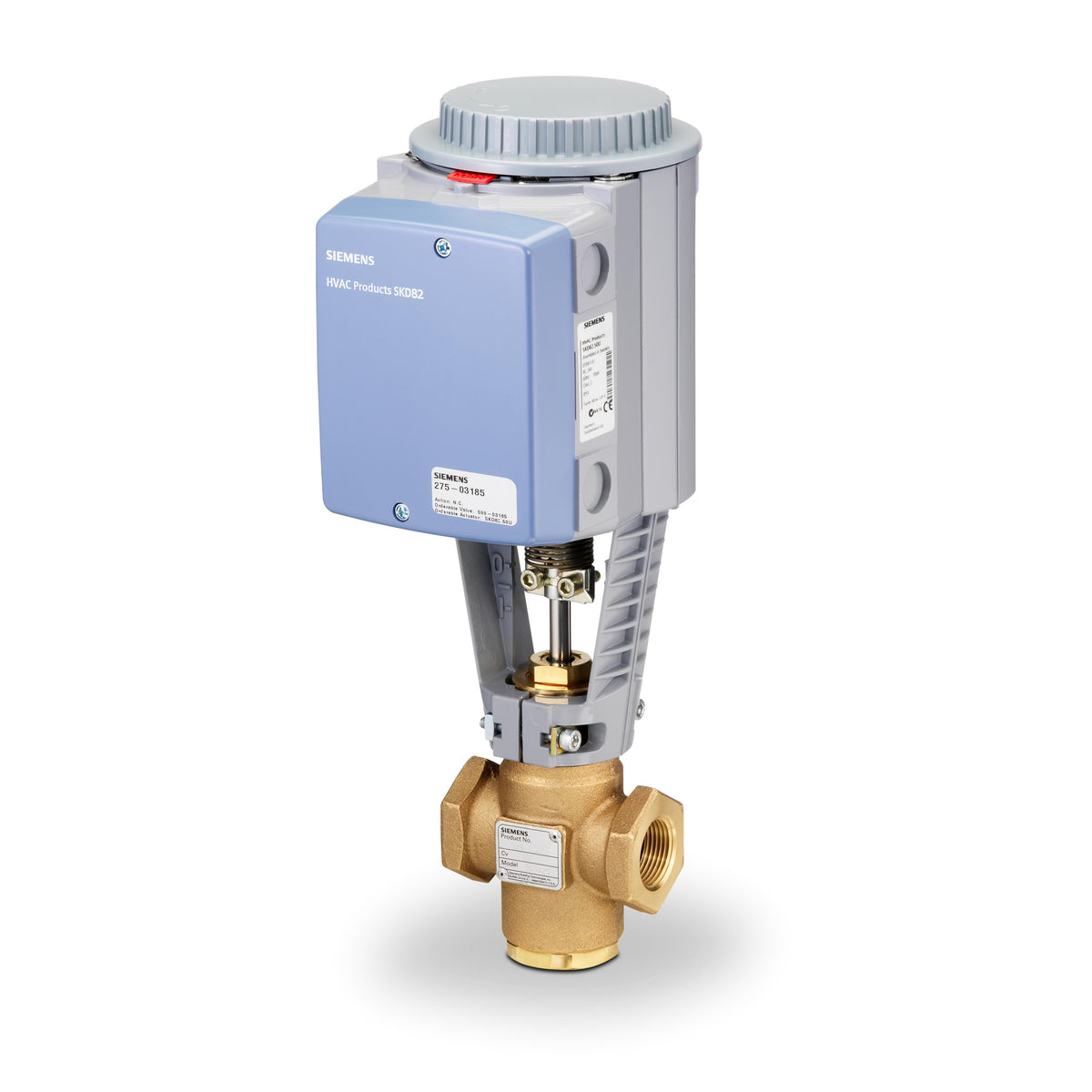

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 267-03077

Overview

Details for 267-03077

Valve assy 2W NC 1" 10Cv, Lin, SS Trim Hi Temp Pkg FxF Prop El-Hydraul Act NSR

Specifications

Valve Body Style
Stroke-Globe
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
YES
Port Configuration
2-Way Normally closed
Medium temperature
20…337 ºF
Stroke
3/4 in
Valve Actuator Type
Electronic
Supply Voltage
24 VAC
Positioning time
Power stroke 30 s, Return stroke 15 s
Power consumption
18 VA
