371-07336 | 371-07336 3 PICV ANSI 250 0-10V NSR | Siemens
Pressure Independent Control Valve, 3 inch, ANSI 250, 195 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SAX Non-spring Return Actuator, 0-10V or 4-20mA

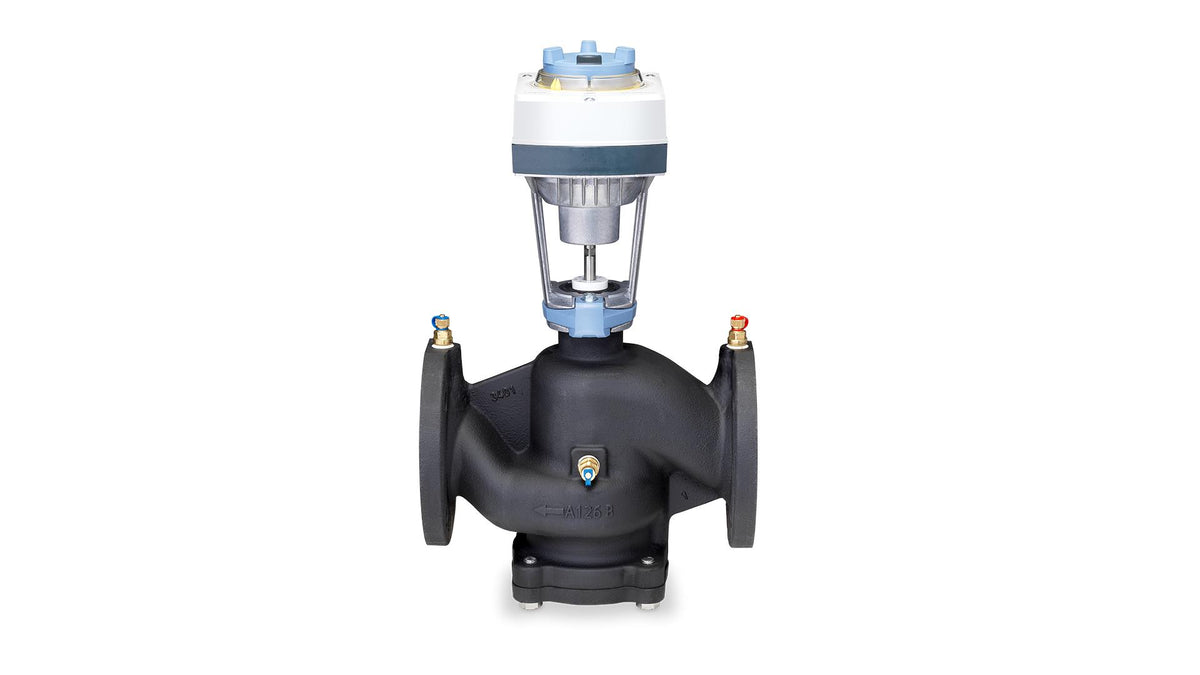

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 371-07336
Documents and manuals
Siemens 371-07336 Documents
Datasheet(SAX Electronic Valve Actuator Non Spring Return. 24 Vac. Proportional Control Technical Instructions)Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(Pressure Independent Control Series. Two-Way Cast Iron Flanged Bodies. ANSI 125 and 250 Technical Instructions)Installation instruction(SAX Electronic Valve Actuator Installation Instructions)Datasheet for Actuator(SAX Electronic Valve Actuator Non Spring Return. 24 Vac. Proportional Control Technical Instructions) Installation Instructions More Info
Overview
Details for 371-07336
371-07336 3 PICV ANSI 250 0-10V NSR
Pressure Independent Control Valve, 3 inch, ANSI 250, 195 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SAX Non-spring Return Actuator, 0-10V or 4-20mA
Specifications
- Valve Size
- 3 in
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Material, valve body
- Cast Iron
- Trim Material
- Brass
- Material, inside set
- Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 195 gpm
- Min GPM
- 31 gpm
- Preset GPM
- 195 gpm
- Pressure Class
- ANSI 250
- Max. Inlet Pressure (absolute), Liquid
- 200 psi
- Max. Differential Pressure, Liquid
- 90 psi
- Medium temperature
- 34…250 ºF
- Stroke
- 3/4 in., 20 mm
- Close-off Pressure
- 100 psi
- Valve Actuator Type
- Electronic
- Actuation Style
- Linear
- Control Signal
- 0...10 Vdc
- Fail Safe
- No
- Positioning time
- 30 s
- Power consumption
- 8 VA
- Positioning signal
- 0...10 V DC, 4…20 mA
- Dimensions (W x H x D)
- 12.5 x 21.5 x 8.25 in
