239-07320 | PICV, 2-1/2 inch, ANSI 250 110 GPM max flow, SQV Actuator, Normally Closed SR | Siemens (OBSOLETE)

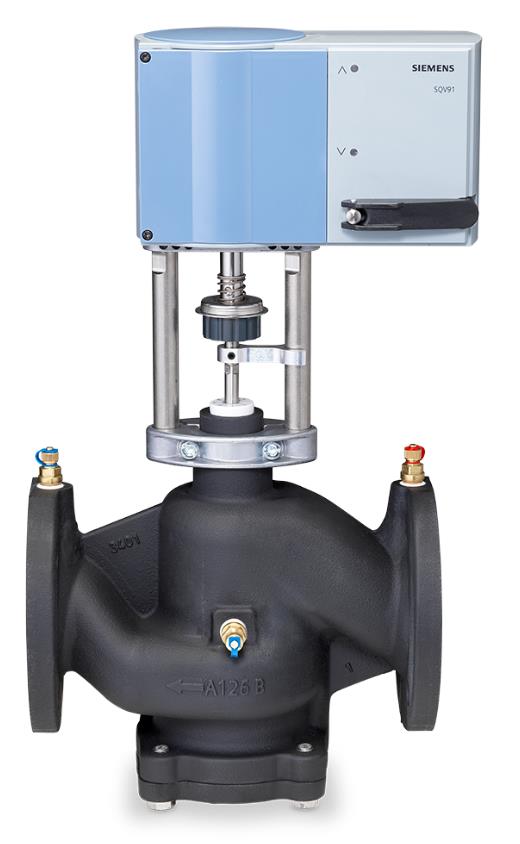

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 239-07320

Jump to: Documents Overview Specifications Alternatives Reviews

Documents and manuals

Siemens 239-07320 Documents

Datasheet Installation Instructions

Overview

Details for 239-07320

DISCONTINUED AND REPLACED WITH 239-07335

PICV, 2-1/2 inch, ANSI 250 110 GPM max flow, SQV Actuator, Normally Closed SR

Pressure Independent Control Valve, 2-1/2 inch, ANSI 250, 110 GPM maximum flow (field adjustable), with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Closed

Specifications

Item Number	239-07320
Brand	Siemens
Control Input	Modulating
Control Valves Type	PICV
CV / GPM	110 GPM
Spring Return	Spring Return
Type	Control Valve (PICV)
Valve Size	2.5" - 2 Way
Voltage	24V
