XENG1191 | Harmony, XAC Pendant Station, contact block, spring return, front mounting, 1 early close NO, 1 NO and 1 NC | Square D by Schneider Electric

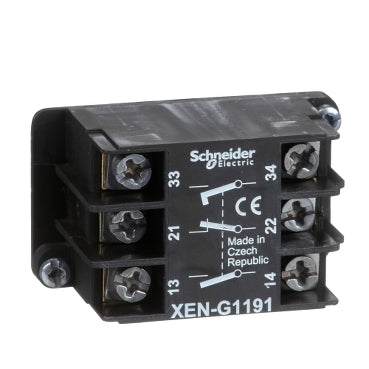

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XENG1191

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XENG1191 Documents

Datasheet More Info

Overview

Details for XENG1191

Harmony, XAC Pendant Station, contact block, spring return, front mounting, 1 early close NO, 1 NO and 1 NC

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Range of Product: Harmony XAC
Product or Component Type: Contact block
Component name: XENG
Electrical circuit type: Control circuit
Contact block application: 2-speed
Contact block type: Single
Type of operator: Spring return
Product Compatibility: XACA, XACA9...head
Contacts type and composition: 1 NC + 2 NO
Mounting of block: Front mounting
Contact operation: Slow-break, Staggered
connections - terminals: Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end, Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Mechanical durability: 1000000 cycles
contact code designation: A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10 A
[Ui] rated insulation voltage: 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
Maximum resistance across terminals: 25 MOhm
Operating force: 18 N
short-circuit protection: 10 A fuse protection cartridge gG
rated operational power in W: 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Terminals description ISO n°1: (21-22)NC, (33-34)NO_CL, (13-14)NO
Net Weight: 0.09 lb(US) (0.04 kg)
standards: UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
vibration resistance: 15 gn 10…500 Hz)IEC 60068-2-6
shock resistance: 100 gn IEC 60068-2-27
overvoltage category: Class II IEC 61140
Category: 22466-PUSHBUTTON, ACCESSORIES
Discount Schedule: CS2
GTIN: 3389110645705
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.18 in (3.0 cm)
Package 1 Width: 1.57 in (4.0 cm)
Package 1 Length: 2.17 in (5.5 cm)
Package 1 Weight: 1.48 oz (42.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 100
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 10.03 lb(US) (4.55 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 1600
Package 3 Height: 30.31 in (77.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 179.24 lb(US) (81.3 kg)
Warranty: 18 months
