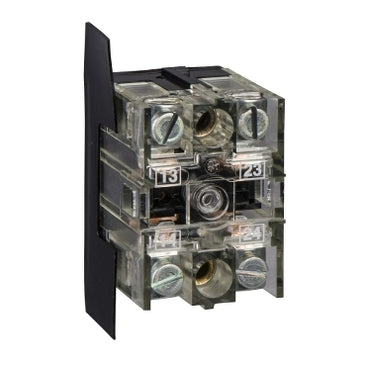

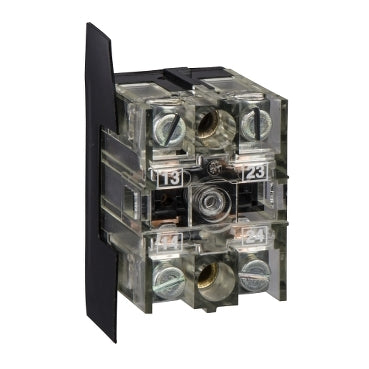

XENB1181 | Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO | Square D by Schneider Electric

Brand: Square DSKU: XENB1181

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XENB1181

Jump to: Overview & Specifications Reviews

Overview Details for XENB1181

Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections

Specifications

Range of Product: Harmony XAC
Product or Component Type: Contact block
Component name: XENB
Electrical circuit type: Control circuit
Contact block application: 2-speed
Contact block type: Single
Type of operator: Spring return
Product Compatibility: XACB, XACM
Mechanical interlocking: Without mechanical interlock
Contacts type and composition: 2 NO
Mounting of block: Front mounting
Contact operation: Staggered, Slow-break
connections - terminals: Screw clamp terminals, 1 x 2.5 mm² with or without cable end, Screw clamp terminals, 2 x 1.5 mm² with or without cable end
Mechanical durability: 1000000 cycles
contact code designation: A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10 A
[Ui] rated insulation voltage: 400 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
Maximum resistance across terminals: 25 MOhm
short-circuit protection: 10 A fuse protection cartridge gG
rated operational power in W: 31 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 35 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
rated operational power in VA: 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive, 210 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive, 640 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive, 680 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive
Terminals description ISO n°1: (33-34)NO, (43-44)NO_CL
Terminal identifier: (13-14)NO, (11-12)NC
Net Weight: 0.11 lb(US) (0.05 kg)
standards: EN 60947-5-1, CSA C22.2 No 14, IEC 60947-5-1
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
vibration resistance: 15 gn 10…500 Hz)IEC 60068-2-6
shock resistance: 100 gn IEC 60068-2-27
Category: 22466-PUSHBUTTON, ACCESSORIES
Discount Schedule: CS2
GTIN: 3389110607659
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.34 in (3.4 cm)
Package 1 Width: 3.82 in (9.7 cm)
Package 1 Length: 2.95 in (7.5 cm)
Package 1 Weight: 1.62 oz (46.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 25
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 3.30 lb(US) (1.499 kg)
Warranty: 18 months
