XB6AW1B1B | Complete illuminated push button, Harmony XB6, white projecting illum pushbutton Ø 16 spring return 1 NO 12...24 V | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XB6AW1B1B
Overview
Details for XB6AW1B1B

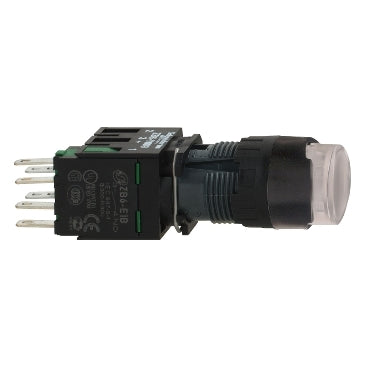

Complete illuminated push button, Harmony XB6, white projecting illum pushbutton Ø 16 spring return 1 NO 12...24 V
Specifications
- Range of Product
- Harmony XB6
- Product or Component Type
- Complete illuminated push-button
- Device short name
- XB6
- Bezel material
- Plastic
- Mounting diameter
- 0.63 in (16 mm)
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- type of operator
- spring return
- operator profile
- White flush, unmarked
- Contacts type and composition
- 1 NO
- Contact operation
- Slow-break
- connections - terminals
- Faston connectors 2.8 x 0.5 mm
- Light source
- LED
- Bulb base
- Integral LED
- [Us] rated supply voltage
- 12...24 V AC/DC
- CAD overall width
- 0.71 in (18 mm)
- CAD overall height
- 0.71 in (18 mm)
- CAD overall depth
- 2.24 in (57 mm)
- Terminals description ISO n°1
- (13-14)NO
- Net Weight
- 0.05 lb(US) (0.022 kg)
- Operating position
- Any position
- positive opening
- With EN/IEC 60947-5-1 appendix K
- operating travel
- 0.04 in (1 mm) NO changing electrical state), 0.14 in (3.5 mm) total travel)
- operating force
- 3.5 N NO changing electrical state
- Contacts material
- Silver alloy (Ag/Ni)
- short-circuit protection
- 6 A cartridge fuse gG
- [Ui] rated insulation voltage
- 250 V 3)EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 4 kV EN/IEC 60947-1
- [Ie] rated operational current
- 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
- electrical durability
- 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- electrical reliability
- Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
- Signalling type
- Steady
- supply voltage limits
- 6…30 V AC/DC
- Current Consumption
- 15 mA
- surge withstand
- 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5
- Protective treatment
- TC
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation
- -13…158 °F (-25…70 °C)
- electrical shock protection class
- Class II IEC 61140
- IP degree of protection
- IP65 IEC 60529
- NEMA degree of protection
- NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
- standards
- JIS C 4520, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C 852, EN/IEC 60947-5-5, CSA C22.2 No 14
- Product Certifications
- GOST, CSA, UL, CCC
- vibration resistance
- +/- 3 mm 2…500 Hz)IEC 60068-2-6, 5 gn 2…500 Hz)IEC 60068-2-6
- shock resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- resistance to fast transients
- 2 kV IEC 61000-4-4
- resistance to electromagnetic fields
- 9.14 V/m (10 V/m) IEC 61000-4-3
- resistance to electrostatic discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- electromagnetic emission
- Class B IEC 55011
- Category
- 22459-PUSHBUTTONS, 16MM
- Discount Schedule
- CS2
- GTIN
- 3389110763706
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.79 in (2.0 cm)
- Package 1 Width
- 3.15 in (8.0 cm)
- Package 1 Length
- 3.15 in (8.0 cm)
- Package 1 Weight
- 0.49 oz (14.0 g)
- Unit Type of Package 2
- S01
- Number of Units in Package 2
- 60
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 5.91 in (15.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 31.75 oz (900.0 g)
- Warranty
- 18 months
