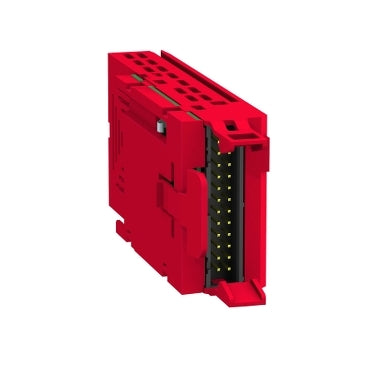

VW3M3501 | eSM safety card - for Lexium 32 servo drive - 24 V DC | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VW3M3501

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D VW3M3501 Documents

Datasheet More Info

Overview

Details for VW3M3501

eSM safety card - for Lexium 32 servo drive - 24 V DC

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. This ESM safety card is for Lexium 32 servo drive. It is an ESM safety card with a rated supply voltage of 24V DC and 19V to 30V voltage limits. It provides reverse polarity protection on input and short-circuit protection on output. It offers safety functions like SOS (safe operating stop), SLS (safe limited speed), SS1 (safe stop 1), STO (safe torque off), SS2 (safe stop 2) with safety levels SIL 3, SILCL 3 and PL = e. It meets EN/IEC 61508, ISO 13849-1 and EN/IEC 62061 standards. This card is compatible with Lexium 32 servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.

Specifications

Range Compatibility: Lexium 32
Accessory / separate part category: Communication option
Accessory / Separate Part Type: ESM safety card
Product or Component Type: ESM safety card
Product Compatibility: Lexium 32
Accessory / separate part destination: Servo drive
[Us] rated supply voltage: 24 V DC 19…30 V
Discrete input number: 11
discrete output number: 7
Voltage state 0 guaranteed: <= 5 V
Voltage state 1 guaranteed: >= 15 V
Reverse polarity protection: Yes on input
Short-circuit protection: Yes on output
Safety Function: SOS (safe operating stop), SLS (safe limited speed), SS1 (safe stop 1), STO (safe torque off), SS2 (safe stop 2)
safety level: SIL 3 EN/IEC 61508, SILCL 3 EN/IEC 62061, PL = e ISO 13849-1
standards: EN/IEC 61508, ISO 13849-1, EN/IEC 62061
Category: 18263-LEXIUM 32 ACCESSORIES
Discount Schedule: PC51
GTIN: 3606480169694
Returnability: No
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.68 in (6.8 cm)
Package 1 Width: 5.12 in (13.0 cm)
Package 1 Length: 7.48 in (19.0 cm)
Package 1 Weight: 4.66 oz (132.0 g)
Unit Type of Package 2: S04
Number of Units in Package 2: 36
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 15.75 in (40.0 cm)
Package 2 Length: 23.62 in (60.0 cm)
Package 2 Weight: 12.40 lb(US) (5.623 kg)
Warranty: 18 months
