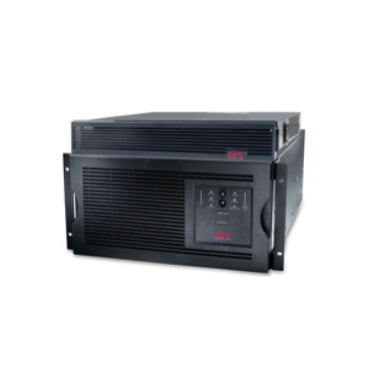

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SUA5000R5TXFMR

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SUA5000R5TXFMR Documents

Datasheet More Info

Overview

Details for SUA5000R5TXFMR

APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output

Specifications

Lead time: Usually Ships within 3 Weeks

Max. Capacity Used
Main Input Voltage: 208 V
Main Output Voltage: 120 V, 208 V
Kw Rating: 4000 W
Rated power in VA: 5000 VA
Input Connection Type: NEMA L6-30P
output connection type: 12 NEMA 5-20R, 2 NEMA L6-20R, 1 NEMA L6-30R
Number of rack unit: 7U
Cable length: 8 ft (2.44 m)
number of cables: 1
Battery Type: Lead-Acid battery
provided equipment: User Manual, Smart UPS signalling RS-232 cable, Rack Mounting support rails, CD with software
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No
color: Black
Height: 12.24 in (31.1 cm)
Width: 19.02 in (48.3 cm)
Depth: 25.00 in (63.5 cm)
Net Weight: 320.66 lb(US) (145.45 kg)
Mounting Location: Front
Mounting preference: Lower
Mounting Mode: Rack-mounted
Two post mountable: 0
USB compatible: No
Efficiency at full load: 151...268 V adjustable, 157...255 V
Input Frequency: 50/60 Hz +/- 5 Hz auto-sensing
Harmonic distortion: Less than 5 % at full load
Maximum configurable power in VA: 5000 VA
Max Configurable Power (Watts): 4000 W
Transfer Time: 2ms typical
Topology: Line Interactive
Waveform Type: Sine wave
Efficiency at full load: 95 % full load)
output frequency: 47...53 Hz for 50 Hz nominal sync to mains, 57...63 Hz for 60 Hz nominal sync to mains
Product Certifications: CSA
Equipment protection policy: Lifetime : $150000
Acoustic level: 53 dBA
Heat dissipation: 1708 Btu/h
Operating altitude: 0...10000 ft
Ambient Air Temperature for Operation: 32…104 °F (0…40 °C)
Ambient Air Temperature for Storage: 5…113 °F (-15…45 °C)
Storage altitude: 0…50000 ft (0.00…15240.00 m)
Relative Humidity: 0…95 %
Storage Relative Humidity: 0…95 %
Run Time: View Runtime Graph
Extendable Run Time: 0
Included Battery Modules: 0
Battery Slots Empty: 0
Typical recharge time: 3 h
RBC Quantity: 2
Battery power in VAH: 1632 VAh runtime
Battery Charge Power (Watts): 542 W rated
Replacement battery: RBC55
alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Emergency Power Off (EPO): Optional
Free slots: 0
Pre-Installed SmartSlot™ Cards: Network management card
alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rating: 1020 J
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
Category: 11309-APC RESALE PRODUCTS
Discount Schedule: APC1
Returnability: No
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 25.00 in (63.5 cm)
Package 1 Width: 30.00 in (76.2 cm)
Package 1 Length: 24.02 in (61 cm)
Package 1 Weight: 355.74 lb(US) (161.36 kg)
Warranty: 2 years repair or replace, optional on-site warranties available, optional extended warranties available
