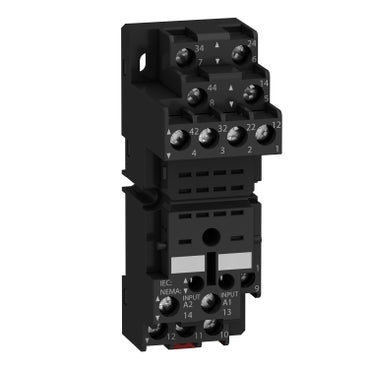

RXZE2M114 | Zelio, plugin relay socket, mixed contact, 10 A, 250 V, screw clamp, for RXM2 or RXM4 relays Pack of 10 | Square D

Brand: Square DSKU: RXZE2M114

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RXZE2M114

Jump to: Overview & Specifications Reviews

Overview Details for RXZE2M114

Zelio, plugin relay socket, mixed contact, 10 A, 250 V, screw clamp, for RXM2 or RXM4 relays

Zelio Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Zelio plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Zelio plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Zelio plug in relays are UL Listed. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Electromechanical Relays;Harmony Timer Relays
Product or Component Type: Socket
contact terminal arrangement: Mixed
product compatibility: Plug-in relay RXM 2 C/O;Plug-in relay RXM 4 C/O
shape of pin: Flat
device short name: RXZ
sale per indivisible quantity: 10
[Ith] conventional free air thermal current: 10 A
[Ue] rated operational voltage: < 250 V
connections - terminals: Screw clamp terminals;1 x 0.25...1 x 1 mm² AWG 22...AWG 17) flexible with cable end;Screw clamp terminals;2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end;Screw clamp terminals;1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end;Screw clamp terminals;2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
tightening torque: < 1 N.m M3
fixing mode: By screw panel);Clip-on 35 mm symmetrical DIN rail)
Marking: CE
Width: 1.18 in (30 mm)
Net Weight: 0.11 lb(US) (0.048 kg)
[Uimp] rated impulse withstand voltage: 4 kV
overvoltage category: III
pollution degree: 3
Standards: IEC 61984
Product Certifications: UL;CSA;Lloyd's
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation: -40…131 °F (-40…55 °C)
IP degree of protection: IP20 conforming to EN/IEC 60529
dielectric strength: 2500 V
Category: 21128-ZELIO ICE CUBE RELAY ACCESSORIES
Discount Schedule: CP2
GTIN: 3389119404242
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.53 in (3.896 cm)
Package 1 Width: 1.18 in (3.005 cm)
Package 1 Length: 3.24 in (8.218 cm)
Package 1 Weight: 1.83 oz (52.0 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 2.91 in (7.4 cm)
Package 2 Width: 3.46 in (8.8 cm)
Package 2 Length: 5.91 in (15.0 cm)
Package 2 Weight: 1.37 lb(US) (0.621 kg)
Unit Type of Package 3: S03
Number of Units in Package 3: 200
Package 3 Height: 11.81 in (30.0 cm)
Package 3 Width: 11.81 in (30.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 26.13 lb(US) (11.851 kg)
Warranty: 18 months
