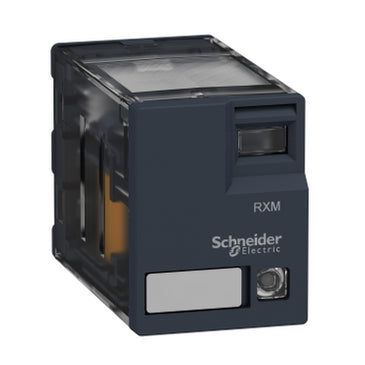

RXM2AB3BD | Miniature plug in relay, Harmony, 12A, 2CO, with LED, 24V DC | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RXM2AB3BD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D RXM2AB3BD Documents

Datasheet More Info

Overview

Details for RXM2AB3BD

Miniature plug in relay, Harmony, 12A, 2CO, with LED, 24V DC

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 24 V DC. It also offers a mechanical indicator where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Specifications

Range of Product: Harmony Electromechanical Relays
series name: Miniature
Product or Component Type: Plug-in relay
device short name: RXM
contacts type and composition: 2 C/O
[Uc] control circuit voltage: 24 V DC
Status LED: With
Control Type: Without lockable test button
utilisation coefficient: 20 %
shape of pin: Flat
[Ui] rated insulation voltage: 250 V IEC;300 V CSA;300 V UL
[Uimp] rated impulse withstand voltage: 4 kV 1.2/50 µs
contacts material: AgNi
[Ie] rated operational current: 12 A 28 V DC) NO IEC;12 A 250 V AC) NO IEC;6 A 28 V DC) NC IEC;6 A 250 V AC) NC IEC;12 A 28 V DC) UL;12 A 277 V AC) UL
continuous output current: 10 A
maximum switching voltage: 250 V IEC
resistive rated load: 12 A 250 V AC;12 A 28 V DC
maximum switching capacity: 3000 VA/336 W
minimum switching capacity: 170 mW 10 mA;17 V
operating rate: <= 1200 cycles/hour under load;<= 18000 cycles/hour no-load
mechanical durability: 10000000 cycles
electrical durability: 100000 cycles resistive
average coil consumption: 0.9 W
drop-out voltage threshold: >= 0.1 Uc
operate time: 20 ms
release time: 20 ms
average coil resistance: 650 Ohm 20 °C +/- 10 %
rated operational voltage limits: 19.2...26.4 V DC
safety reliability data: B10d = 100000
protection category: RT I
test levels: Level A
operating position: Any position
CAD overall height: 3.26 in (82.8 mm)
CAD overall depth: 3.16 in (80.35 mm)
Net Weight: 0.08 lb(US) (0.037 kg)
device presentation: Complete product
dielectric strength: 1300 V AC between contacts with micro disconnection;2000 V AC between coil and contact with basic insulation;2000 V AC between poles with basic insulation
Product Certifications: CE;Lloyd's;GOST;CSA;UL
Standards: EN/IEC 61810-1;UL 508;CSA C22.2 No 14
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
ambient air temperature for operation: -40…131 °F (-40…55 °C)
vibration resistance: 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation;5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
IP degree of protection: IP40 conforming to EN/IEC 60529
shock resistance: 10 gnin operation;30 gnnot operating
pollution degree: 3
Category: 21127-ZELIO ICE CUBE RELAYS
Discount Schedule: CP2
GTIN: 3389119217125
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.22 in (3.1 cm)
Package 1 Width: 4.06 in (10.3 cm)
Package 1 Length: 4.92 in (12.5 cm)
Package 1 Weight: 1.38 oz (39.0 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 1.22 in (3.1 cm)
Package 2 Width: 4.06 in (10.3 cm)
Package 2 Length: 4.92 in (12.5 cm)
Package 2 Weight: 13.90 oz (394.0 g)
Unit Type of Package 3: S01
Number of Units in Package 3: 120
Package 3 Height: 5.91 in (15.0 cm)
Package 3 Width: 5.91 in (15.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 10.96 lb(US) (4.972 kg)
Warranty: 18 months
