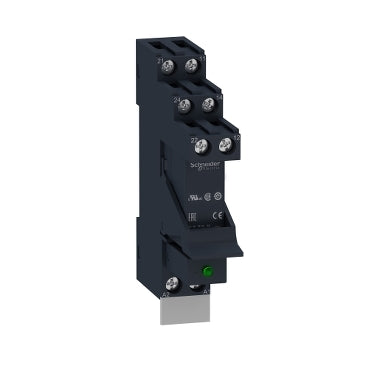

RSB2A080BDPV | Interface plug in relay pre assembled, Harmony, 8A, 2CO, with LED, 24V DC | Square D by Schneider Electric

Brand: Square DSKU: RSB2A080BDPV

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RSB2A080BDPV

Jump to: Overview & Specifications Reviews

Overview Details for RSB2A080BDPV

Interface plug in relay pre assembled, Harmony, 8A, 2CO, with LED, 24V DC

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This is a 8A, 24Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.

Specifications

Range of Product: Harmony Electromechanical Relays
Series name: Interface relay
Product or Component Type: Pre-assembled plug-in relay with socket
Device short name: RSB
Contacts type and composition: 2 C/O
Contact operation: Standard
[Uc] control circuit voltage: 24 V DC
[Ithe] conventional enclosed thermal current: 8 A -40…104 °F (-40…40 °C)
Status LED: 1 LED
Control Type: Without
average coil resistance: 1440 Ohm DC 20 °C +/- 15 %
[Ue] rated operational voltage: 19.2...26.4 V DC
[Ui] rated insulation voltage: 400 V EN/IEC 60947
[Uimp] rated impulse withstand voltage: 3.6 kV IEC 61000-4-5
Contacts material: Silver alloy (AgNi)
[Ie] rated operational current: 4 A AC-1/DC-1) NC IEC, 8 A AC-1/DC-1) NO IEC
Minimum switching current: 10 mA
maximum switching voltage: 300 V DC IEC
minimum switching voltage: 12 V
maximum switching capacity: 2000 VA AC, 224 W DC
resistive rated load: 8 A 250 V AC, 8 A 28 V DC
minimum switching capacity: 120 mW 10 mA, 12 V
operating rate: <= 600 cycles/hour under load, <= 18000 cycles/hour no-load
Mechanical durability: 30000000 cycles
electrical durability: 100000 cycles, 8 A at 250 V, AC-1 NO, 100000 cycles, 4 A at 250 V, AC-1 NC
operating time: 20 ms operating, 20 ms reset
average coil consumption: 0.45 W DC
drop-out voltage threshold: >= 0.1 Uc DC
Safety reliability data: B10d = 100000
Protection category: RT I
test levels: Level A
Operating position: Any position
Torque Value: 7.08 lbf.in (0.8 N.m), 7.0 lbf.in (0.79 N.m)
connections - terminals: Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Net Weight: 0.13 lb(US) (0.057 kg)
Sale per indivisible quantity: 30
Device presentation: Complete product
dielectric strength: 1000 V AC between contacts, 2500 V AC between poles, 5000 V AC between coil and contact
standards: EN/IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984
Product Certifications: CE, UL, CSA, EAC
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
vibration resistance: +/- 1 mm 10…55 Hz)EN/IEC 60068-2-6
IP degree of protection: IP20 conforming to EN/IEC 60529
shock resistance: 10 gn 11 ms) not operating EN/IEC 60068-2-27, 5 gn 11 ms) in operation EN/IEC 60068-2-27
ambient air temperature for operation: -40…185 °F (-40…85 °C) DC)
Category: 21127-ZELIO ICE CUBE RELAYS
Discount Schedule: CP2
GTIN: 3606489562755
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.31 in (8.42 cm)
Package 1 Width: 0.61 in (1.56 cm)
Package 1 Length: 2.53 in (6.42 cm)
Package 1 Weight: 2.12 oz (60 g)
