RE48ATM12MW | Modular timing relay, Harmony, 5A, 2CO, 0.02 s...300h, on delay, 24...240V AC DC | Square D by Schneider Electric

Brand: Square DSKU: RE48ATM12MW

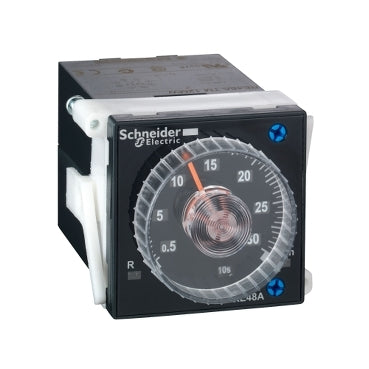

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RE48ATM12MW

Jump to: Overview & Specifications Reviews

Overview Details for RE48ATM12MW

Modular timing relay, Harmony, 5A, 2CO, 0.02 s...300h, on delay, 24...240V AC DC

This Harmony RE48 timing relay can be set between 0.02 seconds and 300 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V to 240V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Timer Relays
Product or Component Type: Single function relay
electrical connection: Plug-in sub-base 8
Discrete output type: Relay
contacts type and composition: 2 C/O timed contacts, AgNi (cadmium free)
Component name: RE48
Time delay type: Power on-delay
Time delay range: 5...300 h, 2...120 min, 0.5...30 h, 0.2...12 h, 0.2...12 min, 0.2...12 s, 0.5...30 min, 2...120 h, 2...120 s, 0.02...1.2 s, 0.5...30 s, 5...300 s, 0.05...3 s, 5...300 min
[Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz
voltage range: 0.85...1.1 Us AC, 0.9...1.1 Us DC
Line Rated Current: 5 A
Product front plate size: 48 x 48 mm
control type: Selector switch front panel
Housing material: Self-extinguishing
repeat accuracy: +/- 0.2 % of the maximum setting value IEC 61812-1
temperature drift: +/- 0.02 %/°C of the maximum setting value IEC 61812-1
voltage drift: +/- 0.2 %/V of the maximum setting value 48...240 V, +/- 1 %/V of the maximum setting value 24...48 V
setting accuracy of time delay: +/- 5 % of full scale 25 °C IEC 61812-1
Minimum pulse duration: 20 ms
reset time: 25 ms on de-energisation
Pick up duration: 55 ms
On-load factor: 100 %
power consumption in VA: 1.1 VA 24 V, 4.8 VA 240 V
power consumption in W: 0.5 W 24 V, 1.7 W 240 V
breaking capacity: 1250 VA
Minimum switching current: 100 mA
Maximum switching current: 5 A
maximum switching voltage: 250 V AC/DC
electrical durability: 100000 cycles
Mechanical durability: 30000000 cycles
output voltage: 240 V 5 A AC-12, 30 V 2 A DC-13, 240 V 1.5 A AC-15
Marking: CE
surge withstand: 1 kV differential mode IEC 61000-4-5 level 3, 2 kV common mode IEC 61000-4-5 level 3
Mounting Support: Panel mounted: system supplied with the product, Base mounted: socket
local signalling: for output relay state 1 LED (yellow), for flashing: relay energised timing in progress LED indicator (green), for on steady: relay energised, no timing in progress LED indicator (green)
Net Weight: 0.31 lb(US) (0.14 kg)
humidity drift: +/- 0.05 %/%RH of the maximum setting value IEC 61812-1
Immunity to microbreaks: 10 ms
dielectric strength: 1 kV 1 mA/1 minute IEC 61812-1
protection against electric shocks: 4 kV class III IEC 60664-1, 4 kV class III IEC 61812-1
standards: 73/23/EEC, 93/68/EEC, EN 50082-1/2, 89/336/EEC, EN 50081-1/2, IEC 61812-1, IEC 60669-2-3
Product Certifications: UL, cULus, C-tick, CSA
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -4…122 °F (-20…50 °C)
IP degree of protection: IP40 IEC 60529 housing), IP50 IEC 60529 front face)
vibration resistance: 0.35 mm 10…55 Hz)IEC 60068-2-6
Relative Humidity: 93 % without condensation IEC 60068-2-3
resistance to electrostatic discharge: 6 kV in contact EN/IEC 61000-4-2 level 3, 8 kV in air EN/IEC 61000-4-2 level 3
resistance to electromagnetic fields: 9.14 V/m (10 V/m) 26 MHz to 1 GHz IEC 61000-4-3 level 3
resistance to fast transients: 2 kV EN/IEC 61000-4-4 level 4 capacitive connecting clip), 4 kV EN/IEC 61000-4-4 level 4 direct)
immunity to radioelectric fields: 10 V 0.15...80 MHz)EN/IEC 61000-4-6 level 3
immunity to voltage dips: 30 % / 10 ms EN/IEC 61000-4-11, 60 % / 100 ms EN/IEC 61000-4-11, 95 % / 5 s EN/IEC 61000-4-11
disturbance radiated/conducted: Class B 0.15...30 MHz EN 55022 (EN 55011 group 1)
Category: 22370-RE, RM MISC TIMERS & COUNTERS
Discount Schedule: CP2
GTIN: 3389110649727
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.24 in (5.7 cm)
Package 1 Width: 4.13 in (10.5 cm)
Package 1 Length: 2.44 in (6.2 cm)
Package 1 Weight: 4.44 oz (126 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 30
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 9.37 lb(US) (4.252 kg)
Warranty: 18 months
