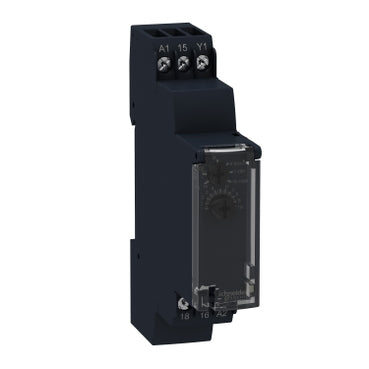

RE17RBMU | Modular timing relay, Harmony, 8A, 1CO, 1s..100h, single interval relay, 24V DC 24...240V AC DC | Square D by Schneider Electric

Brand: Square DSKU: RE17RBMU

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RE17RBMU

Jump to: Overview & Specifications Reviews

Overview Details for RE17RBMU

Modular timing relay, Harmony, 8A, 1CO, 1s..100h, single interval relay, 24V DC 24...240V AC DC

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Timer Relays
Product or Component Type: Single function relay
Discrete output type: Relay
Width: 0.69 in (17.5 mm)
Device short name: RE17R
Time delay type: Interval
Time delay range: 10...100 h, 1...10 min, 6...60 min, 1...10 s, 6...60 s, 1...10 h, 0.1...1 s
Nominal output current: 8 A
Contacts type and composition: 1 C/O
Contacts material: Cadmium free
Height: 3.54 in (90 mm)
Depth: 2.83 in (72 mm)
control type: Selector switch front panel
[Us] rated supply voltage: 24...240 V AC 50/60 Hz, 24 V DC
Voltage range: 0.85...1.1 Us
supply frequency: 50...60 Hz +/- 5 %
release of input voltage: 10 V
connections - terminals: Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
tightening torque: 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material: Self-extinguishing
repeat accuracy: +/- 0.5 % IEC 61812-1
Temperature Drift: +/- 0.05 %/°C
Voltage drift: +/- 0.2 %/V
setting accuracy of time delay: +/- 10 % of full scale 25 °C IEC 61812-1
control signal pulse width: 100 ms with load in parallel typical, 30 ms typical
insulation resistance: 100 MOhm 500 V DC IEC 60664-1
reset time: 120 ms on de-energisation typical
On-load factor: 100 %
power consumption in VA: 0…32 VA 240 V AC
maximum power consumption in W: 0.6 W 24 V DC
minimum switching current: 10 mA 5 V DC
maximum switching current: 8 A AC/DC
maximum switching voltage: 250 V AC
Breaking capacity: 2000 VA
operating frequency: 10 Hz
electrical durability: 100000 cycles resistive 8 A 250 V AC
Mechanical durability: 10000000 cycles
dielectric strength: 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
[Uimp] rated impulse withstand voltage: 5 kV 1.2/50 µs
power on delay: 100 ms
Marking: CE
creepage distance: 4 kV/3 IEC 60664-1
Safety reliability data: MTTFd = 296.8 years, B10d = 270000
mounting position: Any position in relation to normal vertical mounting plane
mounting support: 35 mm DIN rail conforming to EN/IEC 60715
local signalling: LED indicator on steady: relay energised, no timing in progress, LED indicator 80 % ON and 20 % OFF flashing: timing in progress, LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Net Weight: 0.15 lb(US) (0.07 kg)
Time delay type: B
Functionality: Pulse signal
Compatibility code: RE17
Immunity to microbreaks: 20 ms
standards: 2006/95/EC, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, IEC 61812-1, EN 61000-6-1, 2004/108/EC
Product Certifications: GL, cULus, CSA
Ambient Air Temperature for Storage: -22…140 °F (-30…60 °C)
Ambient Air Temperature for Operation: -4…140 °F (-20…60 °C)
IP degree of protection: IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
vibration resistance: 20 m/s² 10…150 Hz)IEC 60068-2-6
shock resistance: 15 gn 11 ms IEC 60068-2-27
Relative Humidity: 93 % without condensation IEC 60068-2-30
electromagnetic compatibility: Electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, Electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, Susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, Electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, Electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, Conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, Voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, Voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, Conducted and radiated emissionsclass B EN 55022
Category: 22370-RE, RM MISC TIMERS & COUNTERS
Discount Schedule: CP2
GTIN: 3606480552687
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.15 in (8.0 cm)
Package 1 Width: 1.06 in (2.7 cm)
Package 1 Length: 3.74 in (9.5 cm)
Package 1 Weight: 2.82 oz (80.0 g)
