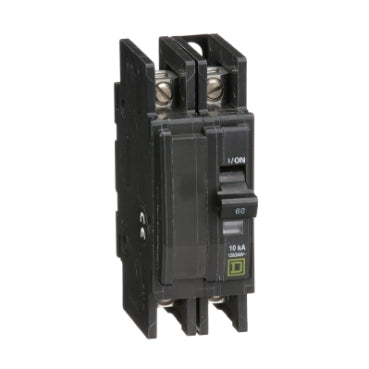

QOU260 | Mini circuit breaker, QOU, 60A, 2 pole, 120/240VAC, 10kA | Square D by Schneider Electric

Brand: Square DSKU: QOU260

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU260

Jump to: Overview & Specifications Reviews

Overview Details for QOU260

Mini circuit breaker, QOU, 60A, 2 pole, 120/240VAC, 10kA

QO™ and QOU Miniature Circuit Breakers, QOU260, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 60 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 1.5 in (38.10 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: UL Listed;CSA;IEC
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901418801
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.60 in (9.144 cm)
Package 1 Width: 4.80 in (12.192 cm)
Package 1 Length: 2.10 in (5.334 cm)
Package 1 Weight: 12.80 oz (362.874 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 24
Package 2 Height: 3.70 in (9.398 cm)
Package 2 Width: 13.60 in (34.544 cm)
Package 2 Length: 20.80 in (52.832 cm)
Package 2 Weight: 19.40 lb(US) (8.8 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 288
Package 3 Height: 40.00 in (101.6 cm)
Package 3 Width: 42.00 in (106.68 cm)
Package 3 Length: 48.00 in (121.92 cm)
Package 3 Weight: 272.00 lb(US) (123.377 kg)
Warranty: 18 months
